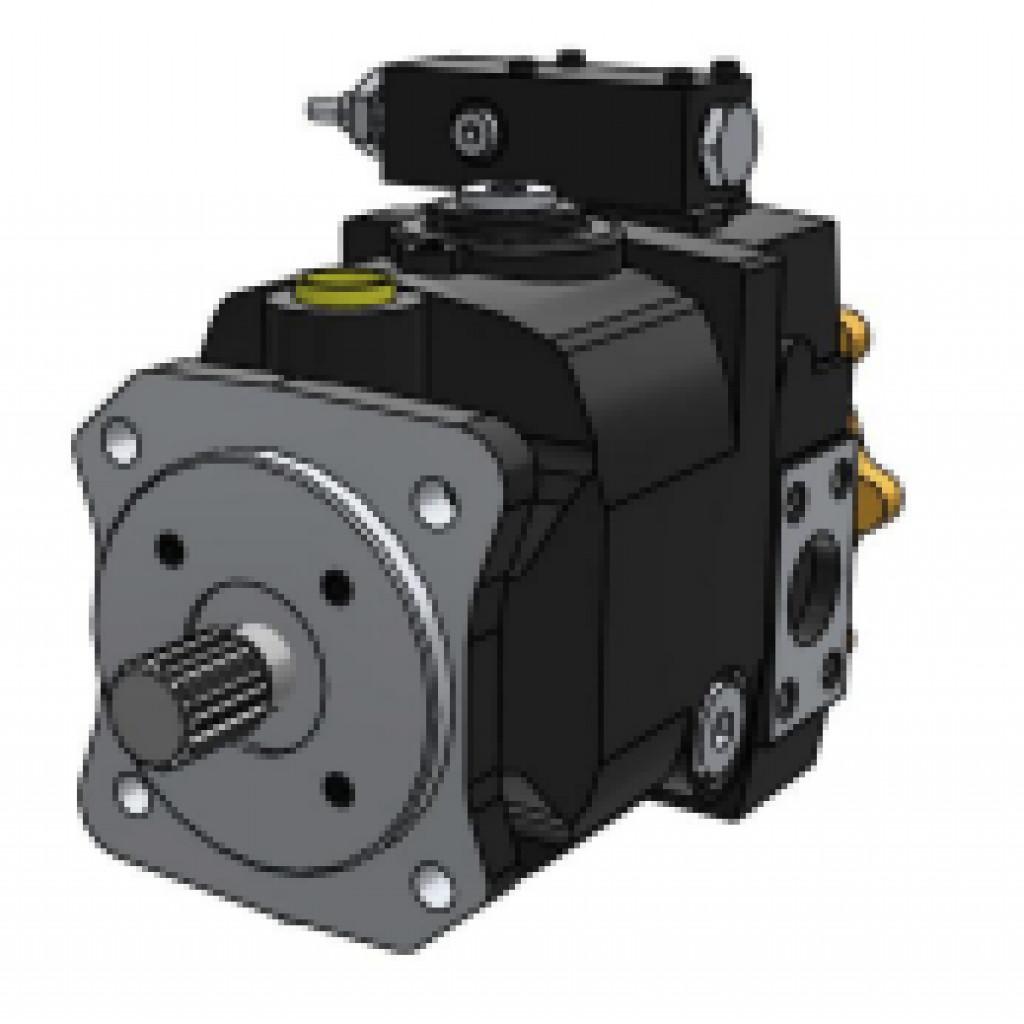

PV046R Variabel stempelpumpe 46 ccm 350/420 bar

Technical Data

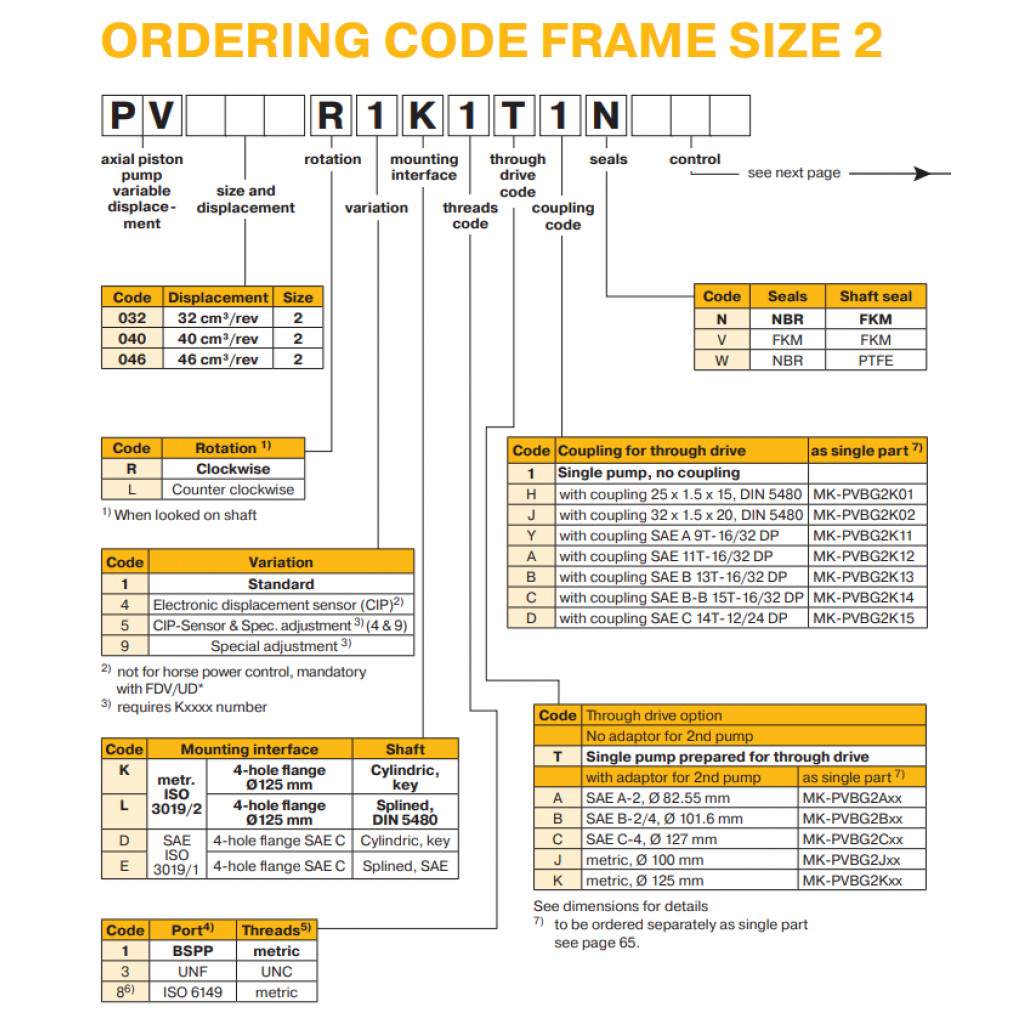

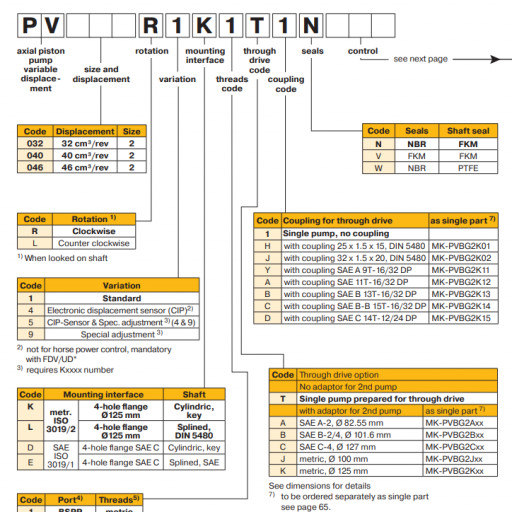

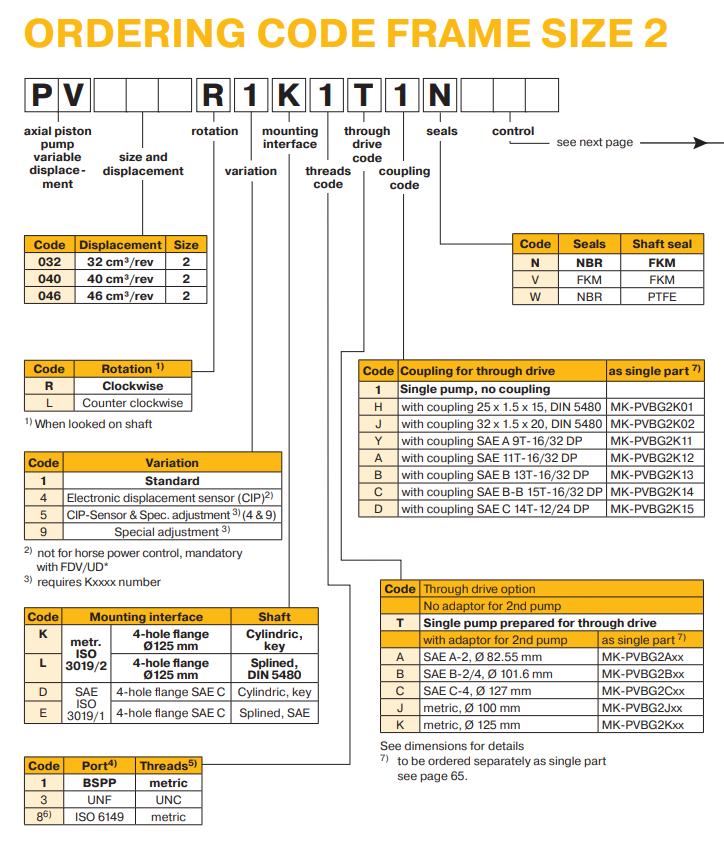

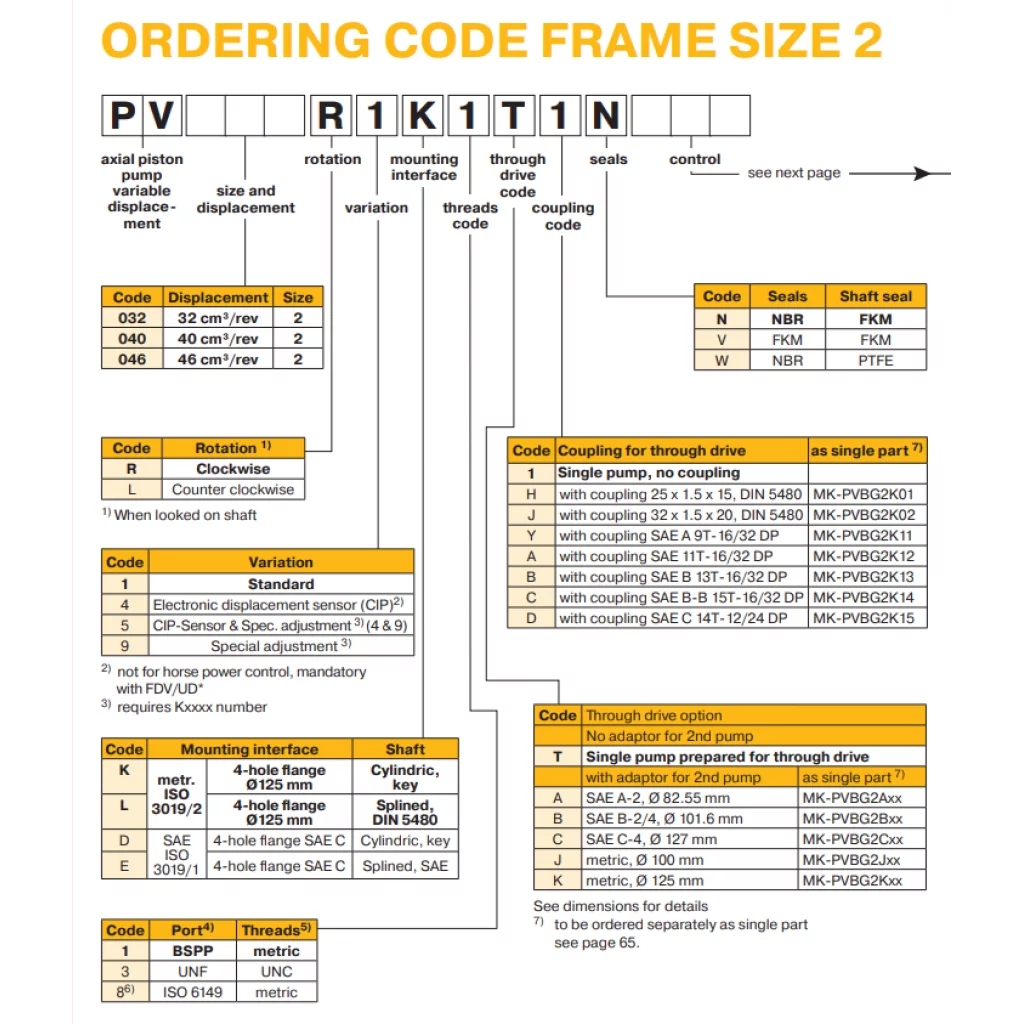

Part No.

PV046R1E1AYNMFC

Series

Series PVplus – Design Series 47

Displacement

046 - 46 [cm3/rev] maximum, Frame Size 2

Rotation

R - Clockwise

Variation

1 - Standard

Mounting Interface / Shaft

E - SAE 4bolt-mount; SAE splined shaft

Ports / Threads

1 - BSPP ports; Metric Threads

Thrudrive pad and coupling

AY - SAE A mount, SAE A 9th coupling

Seals

N - NBR seals / FKM shaftseal

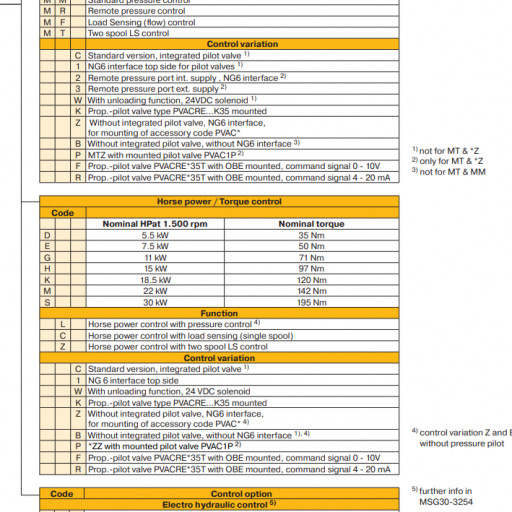

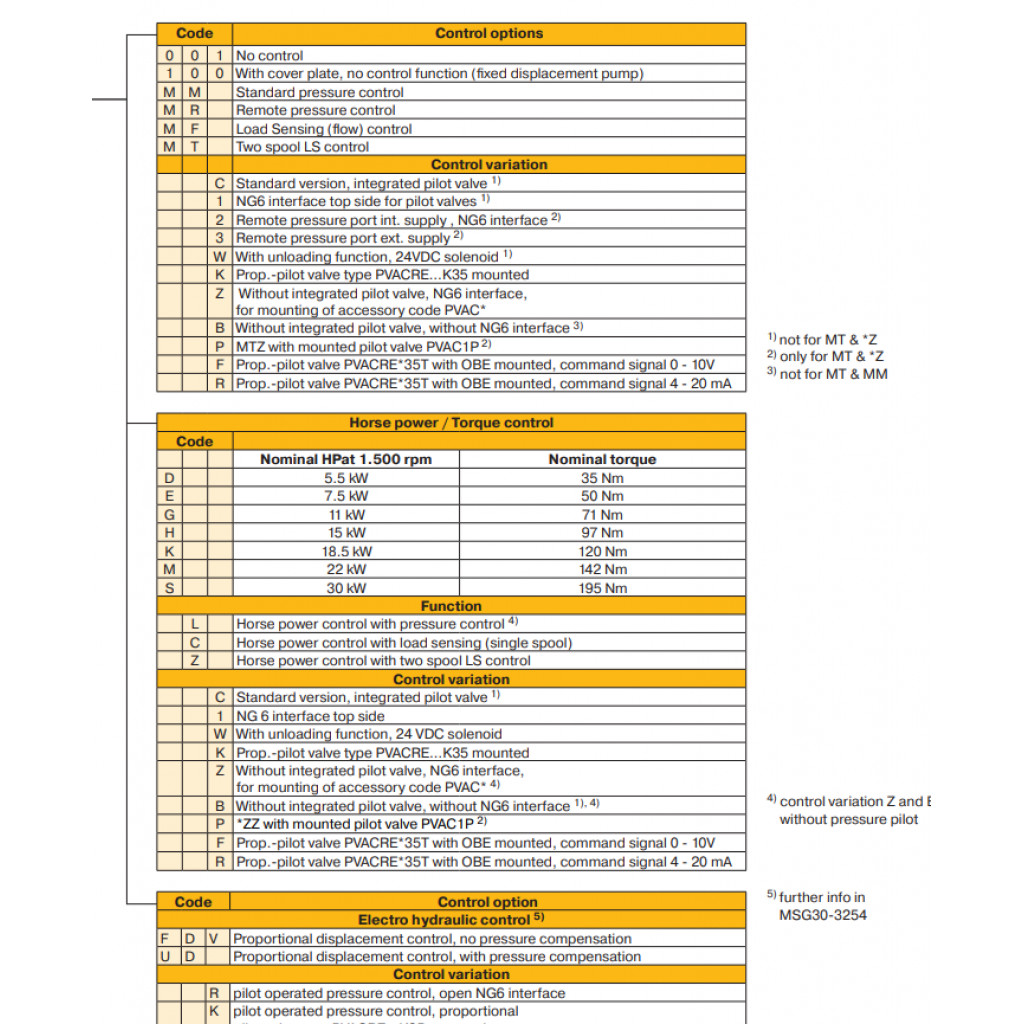

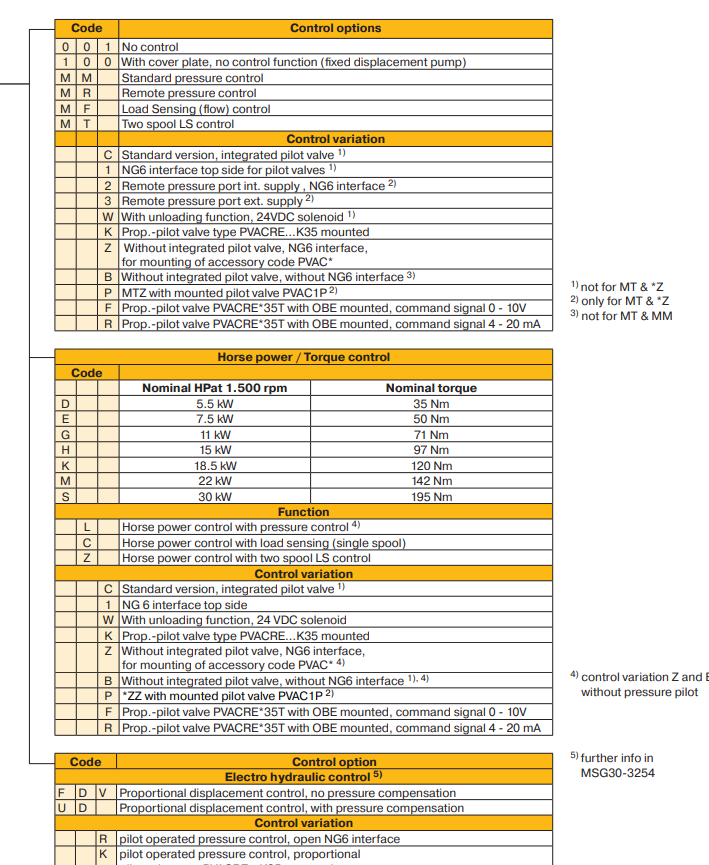

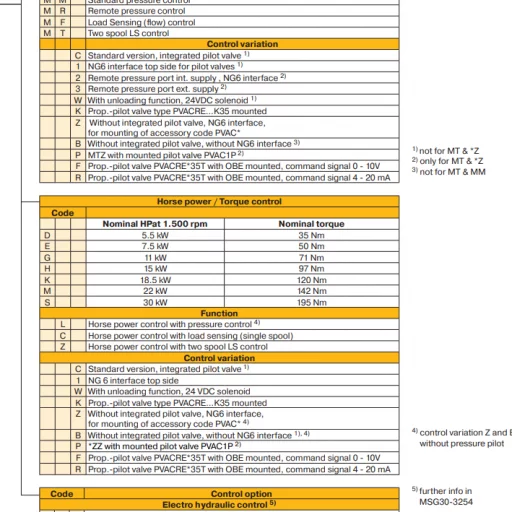

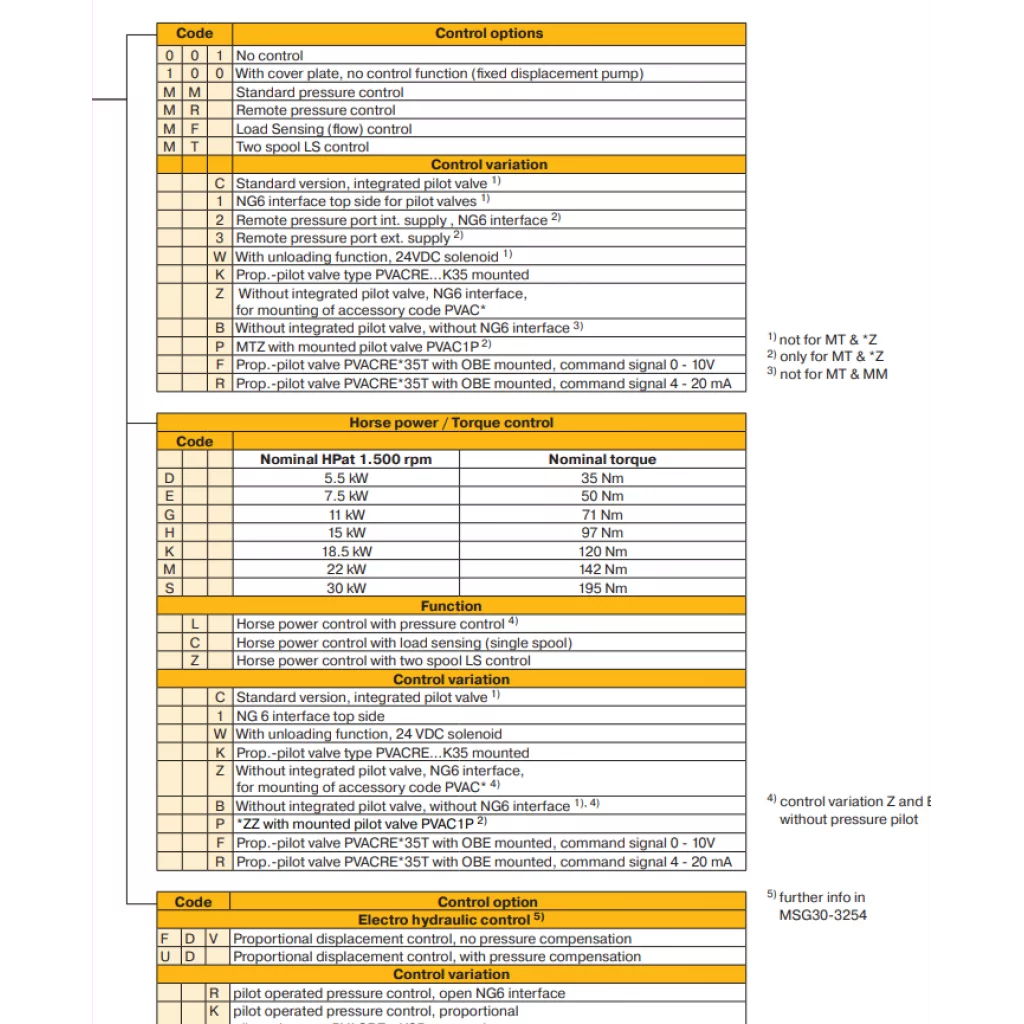

Controls Group

Hydromechanical Controls

Compensation Part 1

M - hydromechanical controls

Compensation Part 2

F - One spool Load Sensing control

Compensation Part 3

C - Standard with integrated pmax. Pilot

Weight [kg]

30
