    f12-030-mf-iv-k-000-0000-pt-hydr.stempelmotor.malt-sort

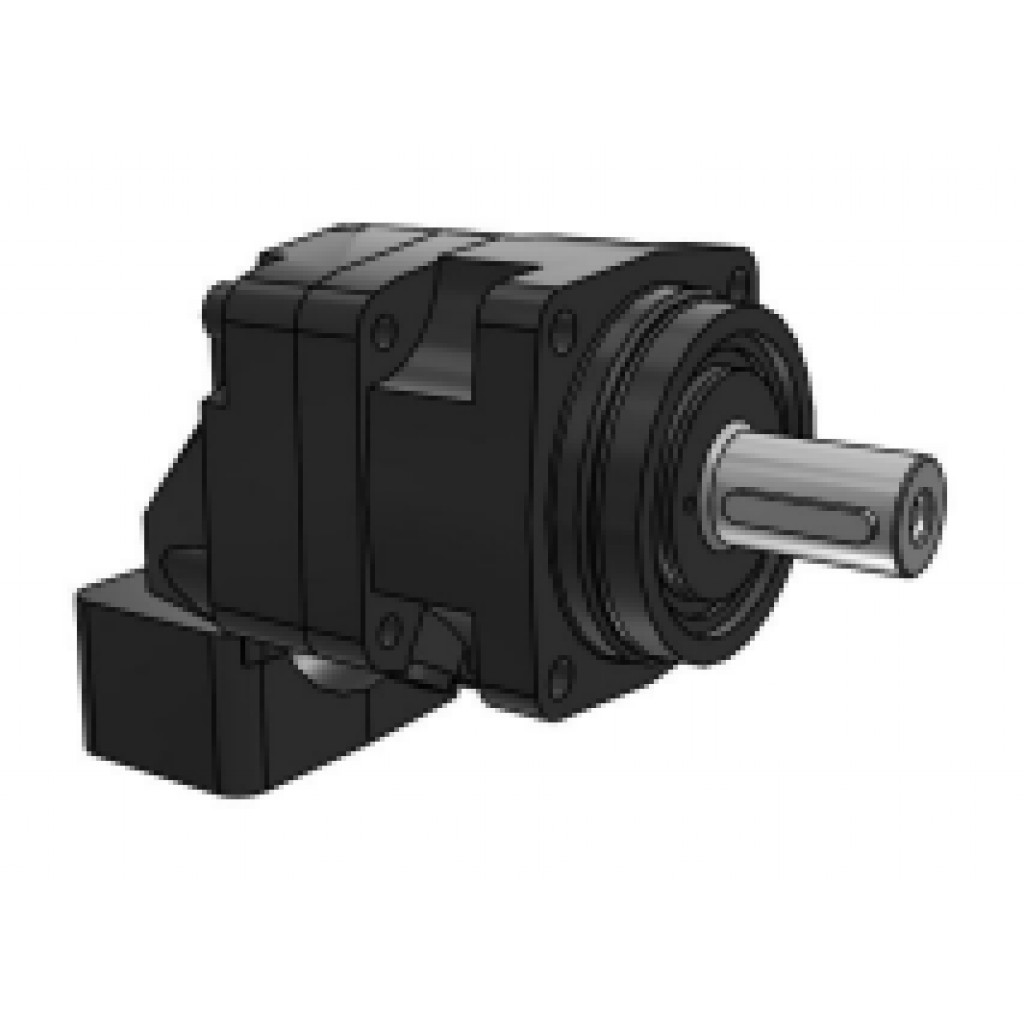

    F12-030-MF-IV-K-000-0000-PT Hydr.stempelmotor.malt sort.

    Produsent: Parker Hannifin

    Technical Data Part No. F12-030-MF-IV-K-000-0000-PT Series F11/F12/F10 Size F12 Displacement 030 - 30.0 cc / 1.83 cu.in. Function M -.. mer

    Lager: 3 stk

    Varenummer:PH1355

    Kategorier: Stempelmotor

    Del produktet


    Technical Data
    Part No. F12-030-MF-IV-K-000-0000-PT
    Series F11/F12/F10
    Size F12
    Displacement 030 - 30.0 cc / 1.83 cu.in.
    Function M - Motor
    Main Ports F - ISO 6162-2
    Mounting Flange I - ISO Flange
    Shaft Seal V - FPM, High Pressure, High Temperature
    Shaft K - DIN 6885
    Version Number 000 - Standard
    Option 1 0000 - Standard
    Pressure

    Option 2 PT - Painted black and prepared for speed sensor

    Vekt 11,5 kg
    Dokument Størrelse
    F12-030-MF-IV-K-000-0000-PT.pdf 882,14 KB
