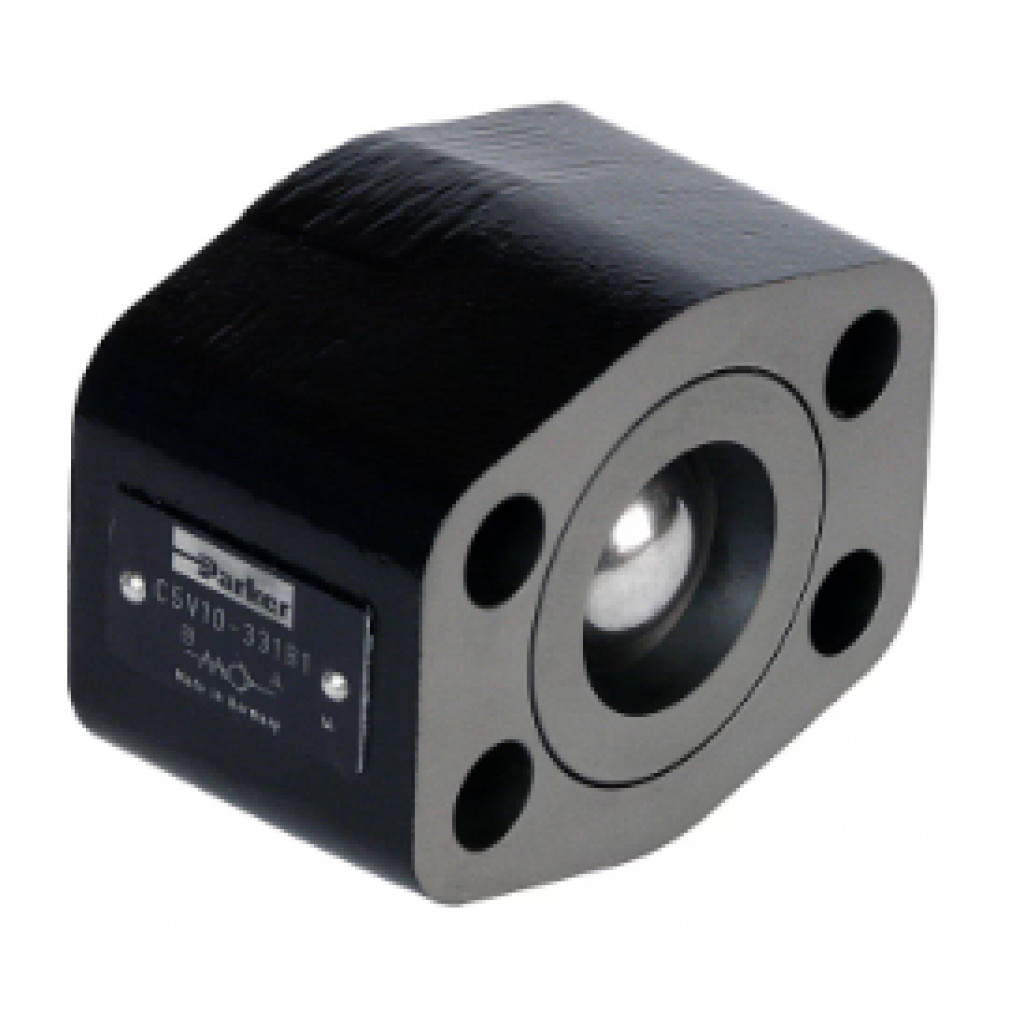

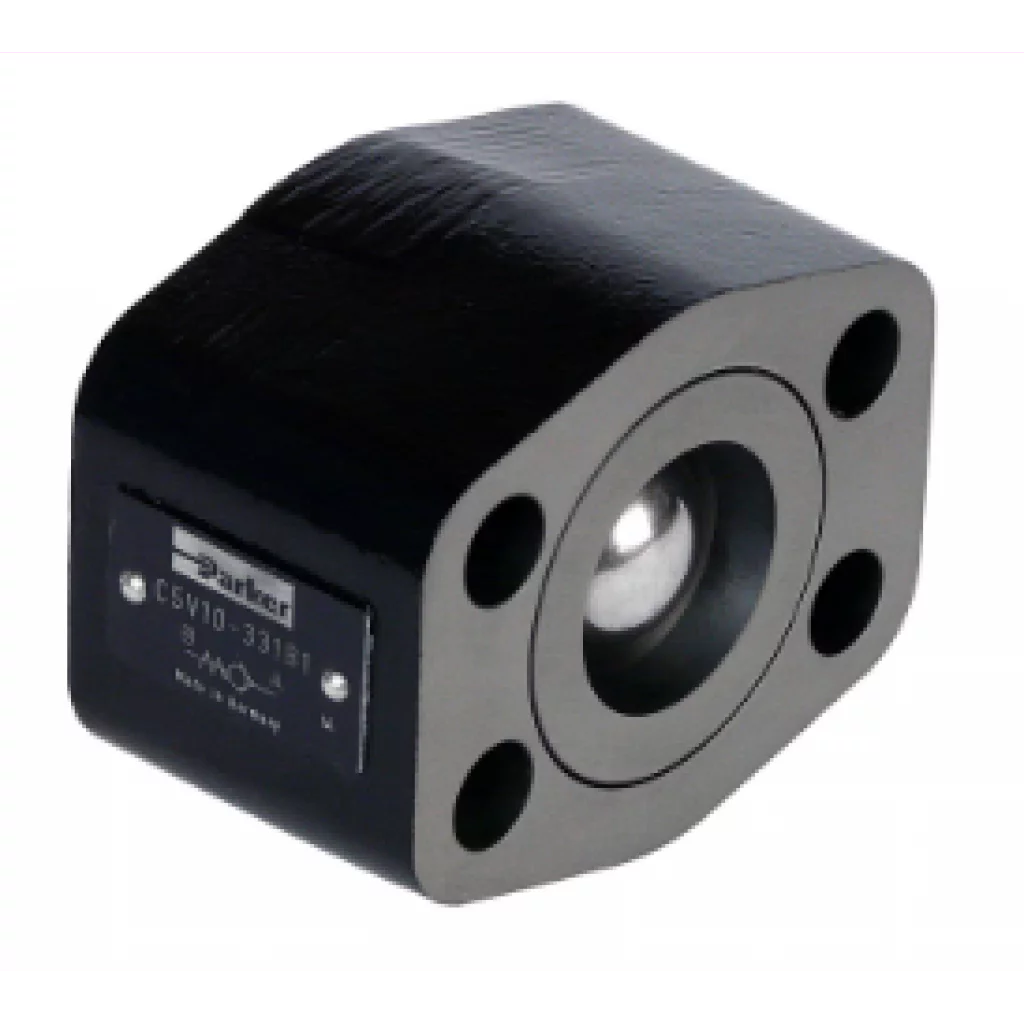

- C5V10-611-B1 019 Check valves 11/4" SAE 6000 psi M14 bolter
Lager: 13 stk
Varenummer:PH1364
Kategorier: Tilbakeslagsventiler
| Mounting Type: | Flanged according SAE |
| Seal Material: | NBR |
| Cracking Pressure: | 1.0 bar |
| Additional Options: | M14 mounting screws |
| DIN Flange Size: | SAE62 |
| Seal Type: | Sealing for port A |
| Operation Type: | Direct |
| Product Series: | Check Valve |
| Weight: | 1.3 kg |
| Maximum Flow Rate: | 400 L/min |
| Maximum Operating Pressure: | 420 bar |
| Maximum Operating Temperature: | 60 °C |
| Minimum Operating Temperature: | -20 °C |
| Body Material: | Cast Iron |
| Configuration: | n/a |
| Connection Size: | n/a |
| Connection Type: | Flange |
| Flow Direction: | A to B |
| Actuation Type: | Mechanical |
| Seal Material: | NBR |
| Cracking Pressure: | 1.0 bar |
| Port Connection: | SAE 1 1/4 |
| Nominell størrelse DN | DN 32 |
| Gjenge / tilkobling | 1-1/4" SAE |
| Maks Trykk (bar) | 6000 psi |
| Materiale | Stål |
| Kalibrert trykk (bar) | 1,0 bar |
