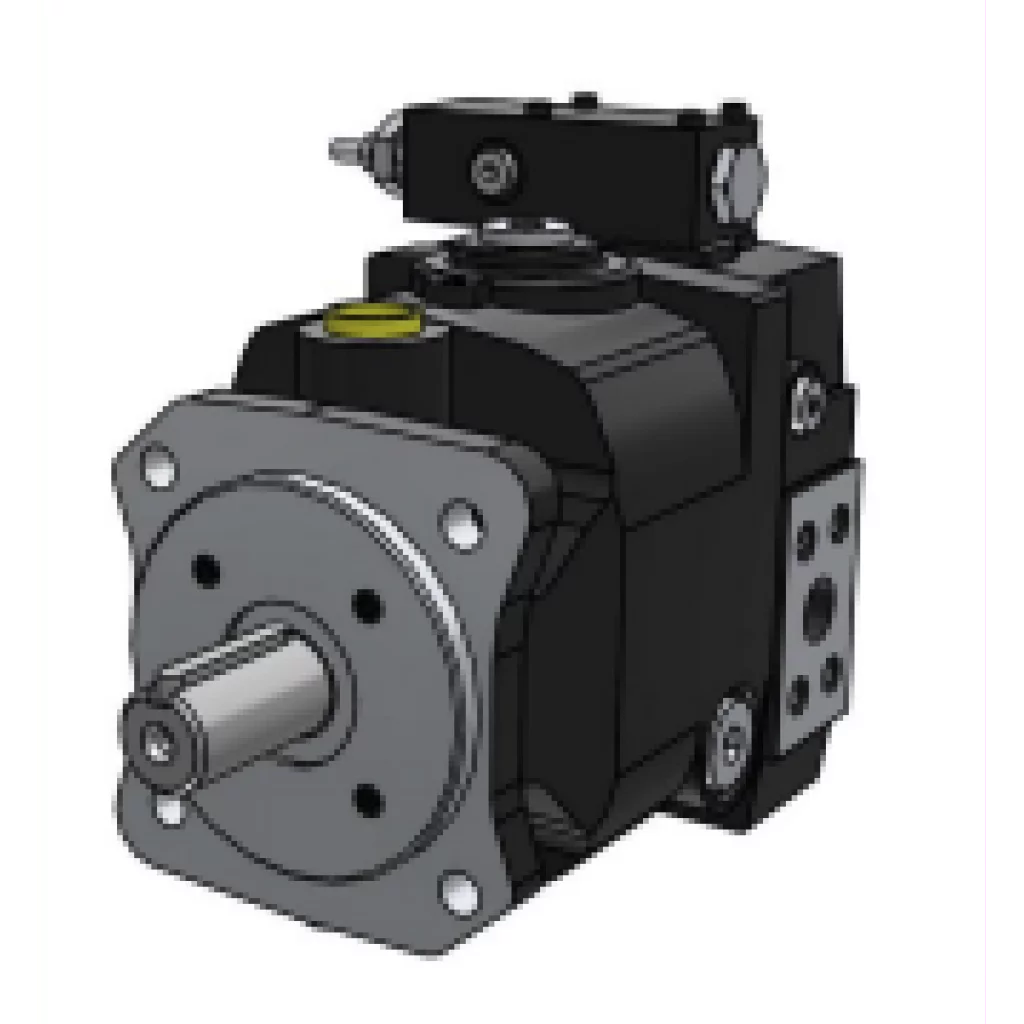

VP1-120-L Aksial stempelpumpe variabel 380/400 Bar

Technical Data
Part No. PV046L1D1T1NMFC
Series Series PVplus – Design Series 47
Displacement 046 - 46 [cm3/rev] maximum, Frame Size 2
Rotation L - Counter Clockwise
Variation 1 - Standard
Mounting Interface / Shaft D - SAE 4bolt-mount; SAE keyed shaft
Ports / Threads 1 - BSPP ports; Metric Threads
Thrudrive pad and coupling T1 - Single Pump prepared for thru drive, no coupling
Seals N - NBR seals / FKM shaftseal
Controls Group Hydromechanical Controls
Compensation Part 1 M - hydromechanical controls
Compensation Part 2 F - One spool Load Sensing control
Compensation Part 3 C - Standard with integrated pmax. Pilot
Weight [kg] 30
