    f12-080-ms-sv-t-000-0000-pt-hydr.stempelmotor.malt-svart

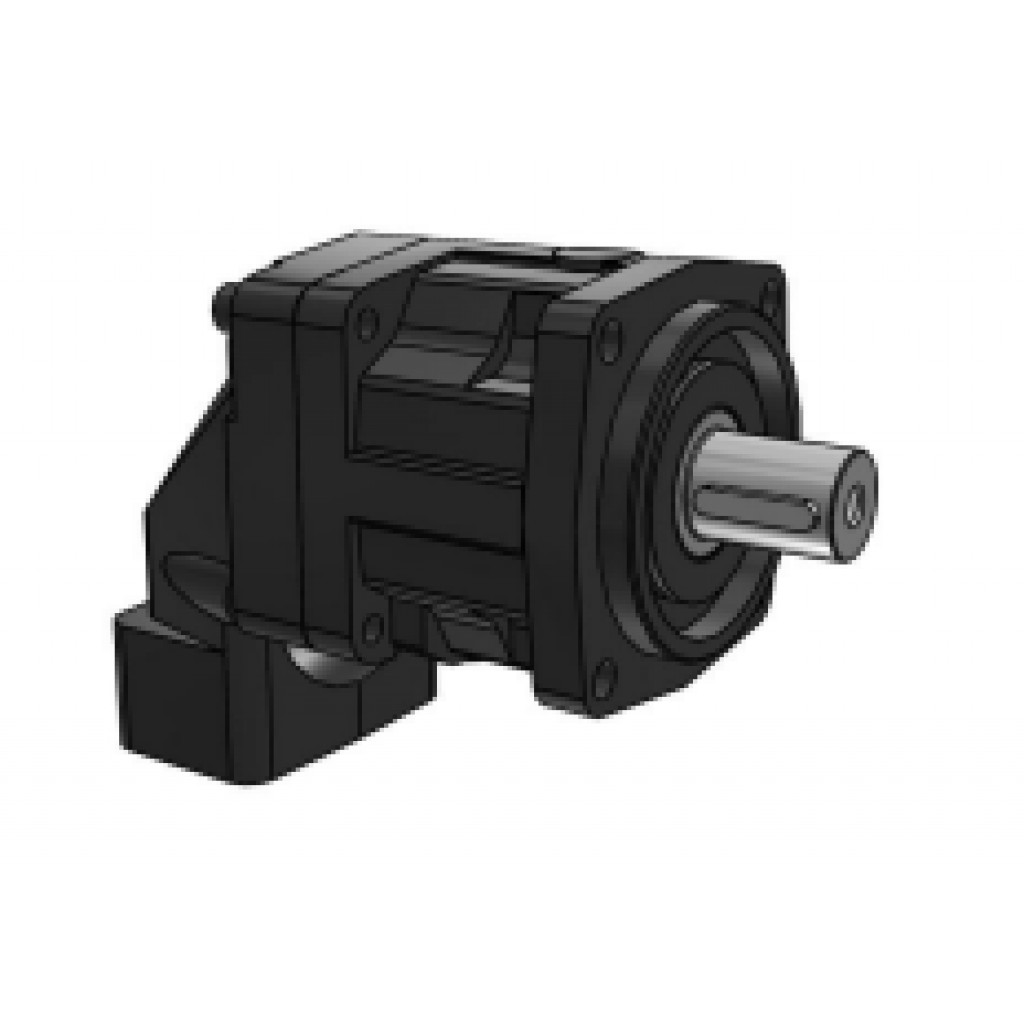

    F12-080-MS-SV-T-000-0000-PT Hydr.stempelmotor.Malt svart

    Produsent: Parker Hannifin

    Technical Data Part No. F12-080-MS-SV-T-000-0000-PT Series F11/F12/F10 Size F12 Displacement 080 - 80.4 cc / 4.90 cu.in. Function M - .. mer

    Lager: 4 stk

    Varenummer:PH1487

    Kategorier: Stempelmotor

    Del produktet

    Technical Data
    Part No. F12-080-MS-SV-T-000-0000-PT
    Series F11/F12/F10
    Size F12
    Displacement 080 - 80.4 cc / 4.90 cu.in.
    Function M - Motor
    Main Ports S - ISO 6162-2
    Mounting Flange S - SAE 4 Flange
    Shaft Seal V - FPM, High Pressure, High Temperature
    Shaft T - ISO 3019-1 (SAEJ744)
    Version Number 000 - Standard
    Option 1 0000 - Standard
    Pressure

    Option 2 PT - Painted black and prepared for speed sensor
    Weight [kg] 25.7

    Dokument Størrelse
    F12-080-MS-SV-T-000-0000-PT.pdf 887,40 KB
