    f12-090-mf-cv-c-000-0000-pt-hydr.stempelmotor-.malt-svart

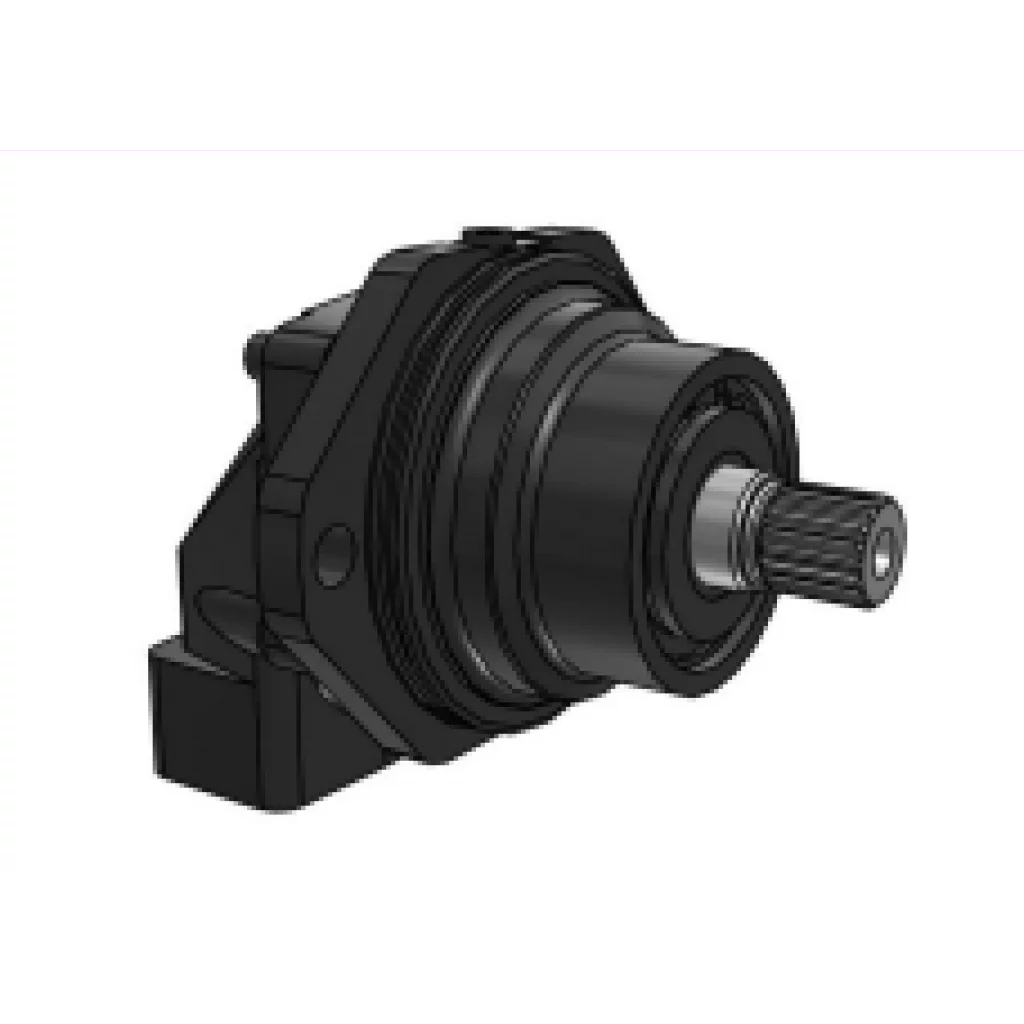

    F12-090-MF-CV-C-000-0000-PT Hydr.stempelmotor .Malt svart

    Produsent: Parker Hannifin

    Technical Data Part No. F12-090-MF-CV-C-000-0000-PT Series F11/F12/F10 Size F12 Displacement 090 - 93.0 cc / 5.67 cu.in. Function M -.. mer

    Lager: 2 stk.

    Varenummer:PH1674

    Kategorier: Stempelmotor

    Del produktet


    Technical Data
    Part No. F12-090-MF-CV-C-000-0000-PT
    Series F11/F12/F10
    Size F12
    Displacement 090 - 93.0 cc / 5.67 cu.in.
    Function M - Motor
    Main Ports F - ISO 6162-2
    Mounting Flange C - Cartridge
    Shaft Seal V - FPM, High Pressure, High Temperature
    Shaft C - ISO 3019-2 (DIN 5480)
    Version Number 000 - Standard
    Option 1 0000 - Standard
    Pressure

    Option 2 PT - Painted black and prepared for speed sensor
    Weight [kg] 25.7

    Liter pr minutt
    Vekt 26 kg
    Dokument Størrelse
    F12-090-MF-CV-C-000-0000-PT.pdf 944,57 KB
