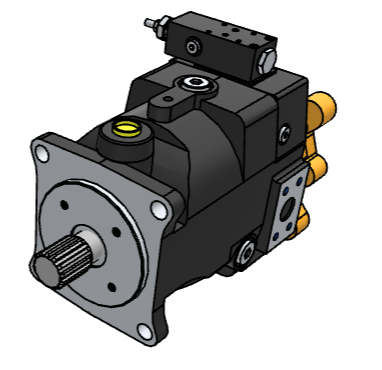

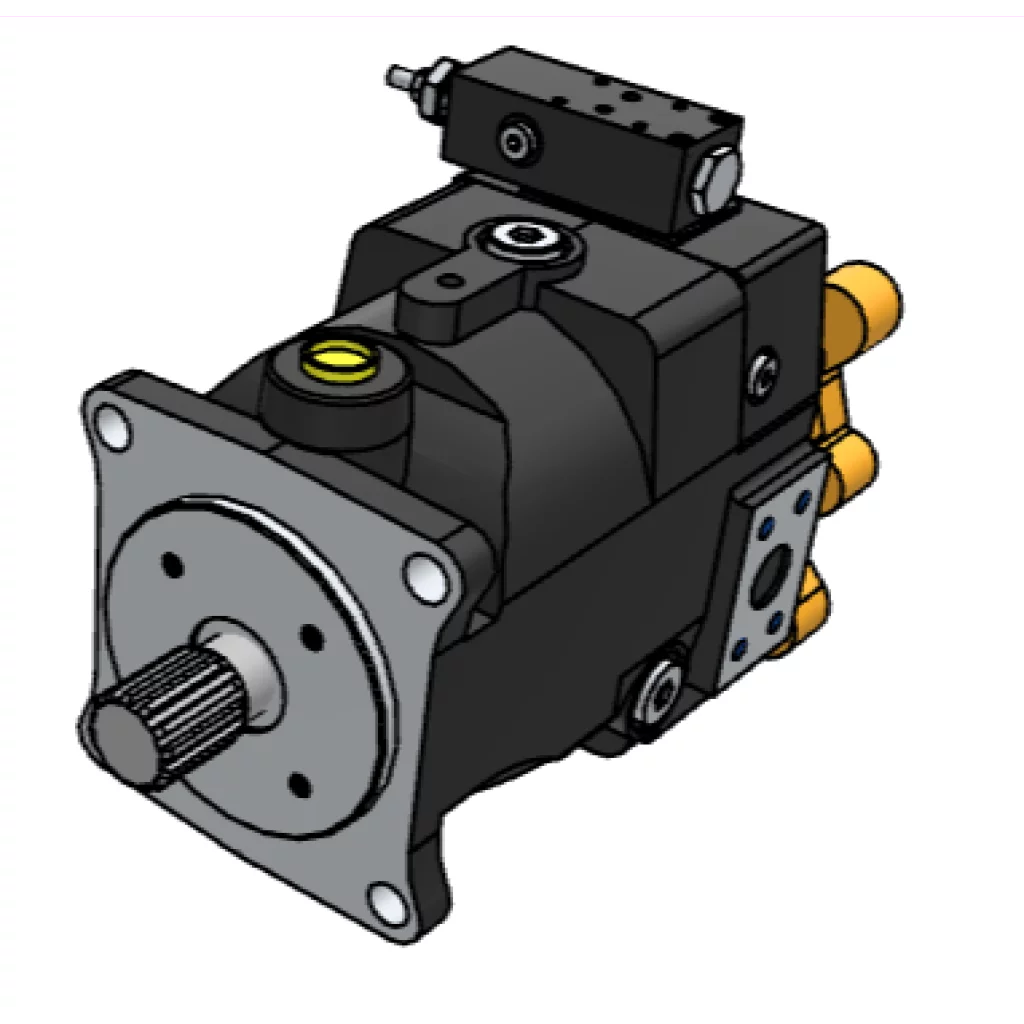

PV080L1E1BBNMM1X5889 Variabel stempel pumpe 80 ccm 350 bar Venstre-gående ATEX

Technical Data

Part No.

PV080L1E1BBNMM1

Series

Series PVplus – Design Series 47

Displacement

080 - 80 [cm3/rev] maximum, Frame Size 3

Rotation

L - Counter Clockwise

Variation

1 - Standard

Mounting Interface / Shaft

E - SAE 4bolt-mount; SAE splined shaft

Ports / Threads

1 - BSPP ports; Metric Threads

Thrudrive pad and coupling

BB - SAE B mount, SAE B 13th coupling

Seals

N - NBR seals / FKM shaftseal

Controls Group

Hydromechanical Controls

Compensation Part 1

M - hydromechanical controls

Compensation Part 2

M - Pressure Compensator

Compensation Part 3

1 - NG6 interface topside for pilot mount, integrated pmax pilot

Weight [kg]

59
