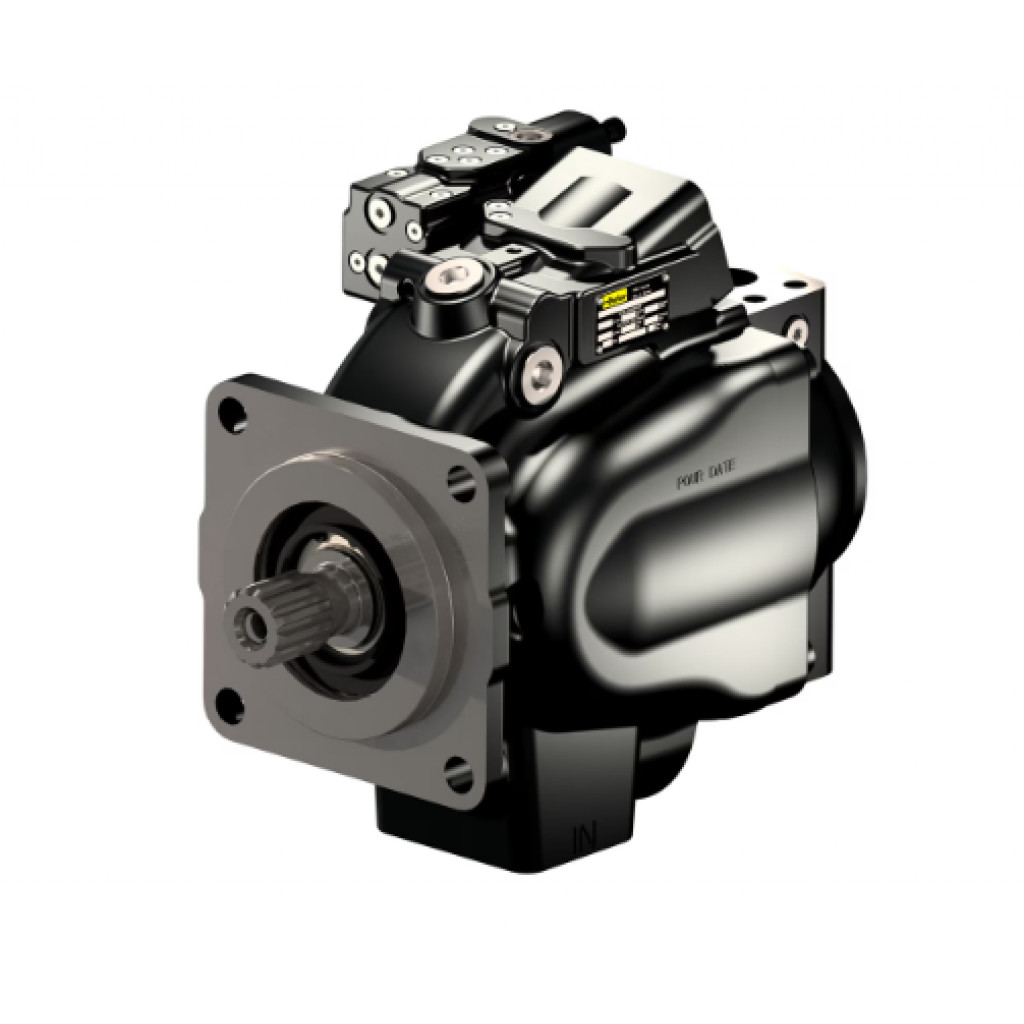

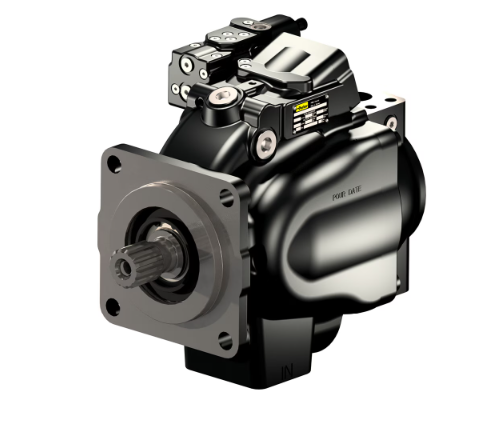

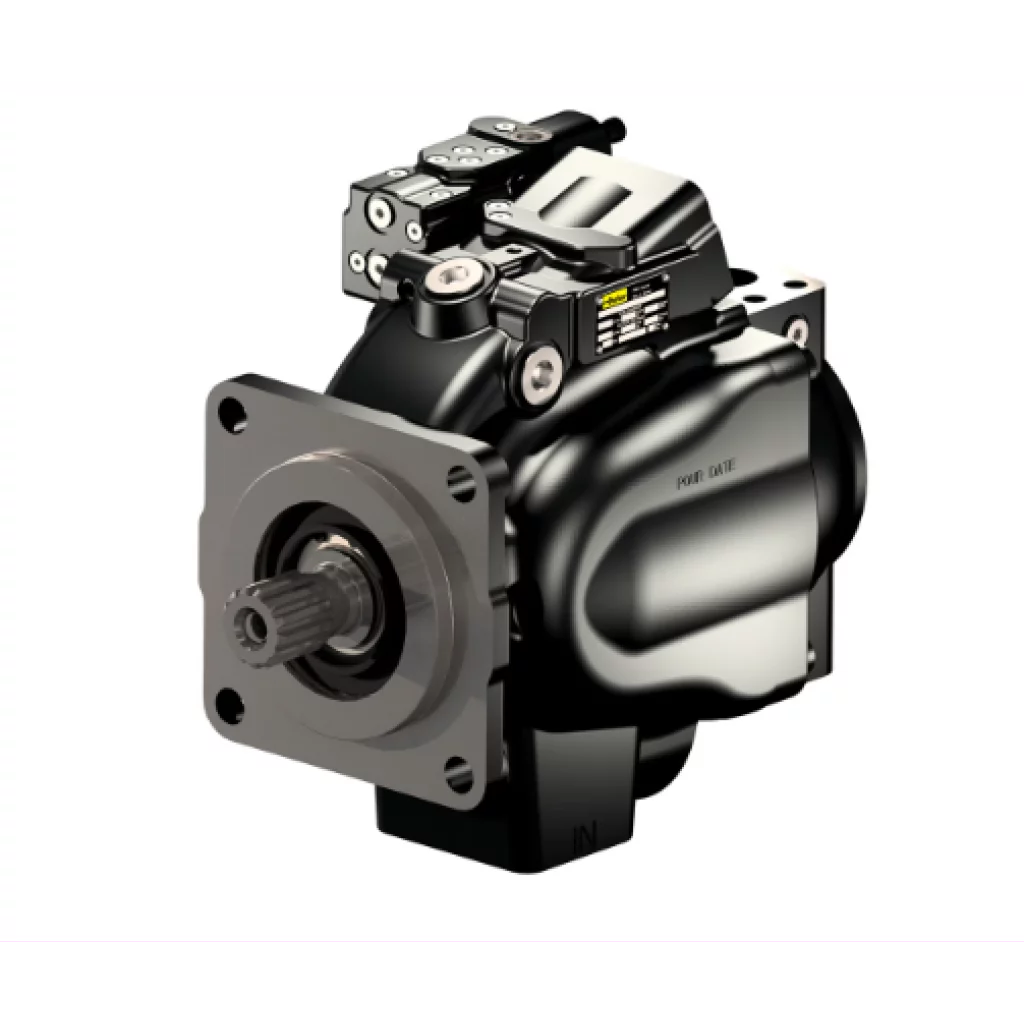

- P2075R00C1C25LA20N00T1A1P Variabel stempel pumpe 75 ccm 320/370 bar
Ikke på lager.
Varenummer:PH1777
Kategorier: Stempelpumper
| Parameter | Description |
|---|---|
| Displacement | 75 cc/rev (4.6 cu.in./rev) |
| Rotation | Clockwise (R) |
| Mounting Flange | SAE C Pilot – 5" |
| Shaft Type | C1 – SAE C 14T Splined Shaft (non-thru drive) |
| Through Drive Configuration | T1 – Prepared for through drive (with cover plate) |
| Control Type | LA – Load Sensing (2-spool) with Pmax, no bleed orifice |
| Max Pressure Setting | 250 bar (25 × 10 = 250 bar) |
| Differential Pressure Setting | 20 bar |
| Seal Type | N – Nitrile, single shaft seal |
| Port Configuration | A – Side, inline flange ports (UN thread) |
| Max Volume Stop Setting | 100% displacement (default) |
| Paint / Finish | P – Painted black |
| Multiple Pump Option | 1 – Supplied as individual pump |
| Liter pr minutt |
