    RP-10A-20-W-8 - Trykkavlastningsventil - T-10A - 95 l/min - 350 bar
    rp-10a-20-w-8-trykkavlastningsventil-t-10a-95-l-min-350-bar

    RP-10A-20-W-8 - Trykkavlastningsventil - T-10A - 95 l/min - 350 bar

    Produsent: Winner Hydraulics

    Cavity 10A-2 Rated Flow 95 L/min Maximum Operating Pressure 350 bar Valve Hex Size 22.22 mm Valve Installation Torque 40 - 50 Nm Response .. mer

    Lager: 3 stk

    Varenummer:WC1158

    Kategorier: Patronventiler

    Del produktet
    Cavity 10A-2
    Rated Flow 95 L/min
    Maximum Operating Pressure 350 bar
    Valve Hex Size 22.22 mm
    Valve Installation Torque 40 - 50 Nm
    Response Time-Typical 10 ms
    Maximum Leakage Approximately 33 cc/min at 70 bar
    Weight 0.1 kg

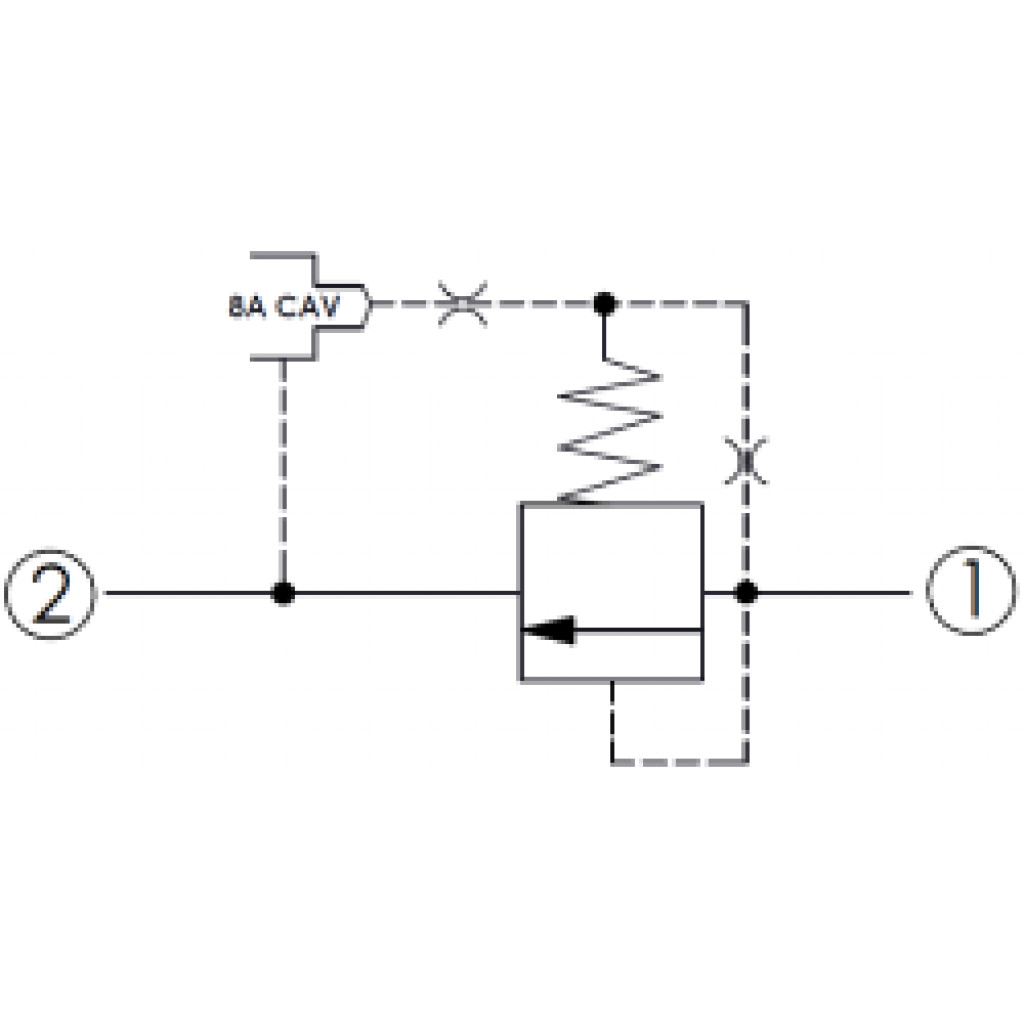

    Typical pressure rise performance curve for RP10A20-8 pilot-operated, balanced piston relief valve with an integral 8A-2 control cavity, showing the relationship between pressure and flow variation

    Cavity T-10A
    Materiale
    Type Trykkavlastning
    Maks flow (l/min) 95
    Trykkområde (bar) Ikke oppgitt
    Maks Trykk (bar) 350
    Dokument Størrelse
    B-101-201-E(RP-10A-20-8).pdf 98,41 KB
    Dokument Størrelse
    RP10A20-8.STEP 5,14 MB
