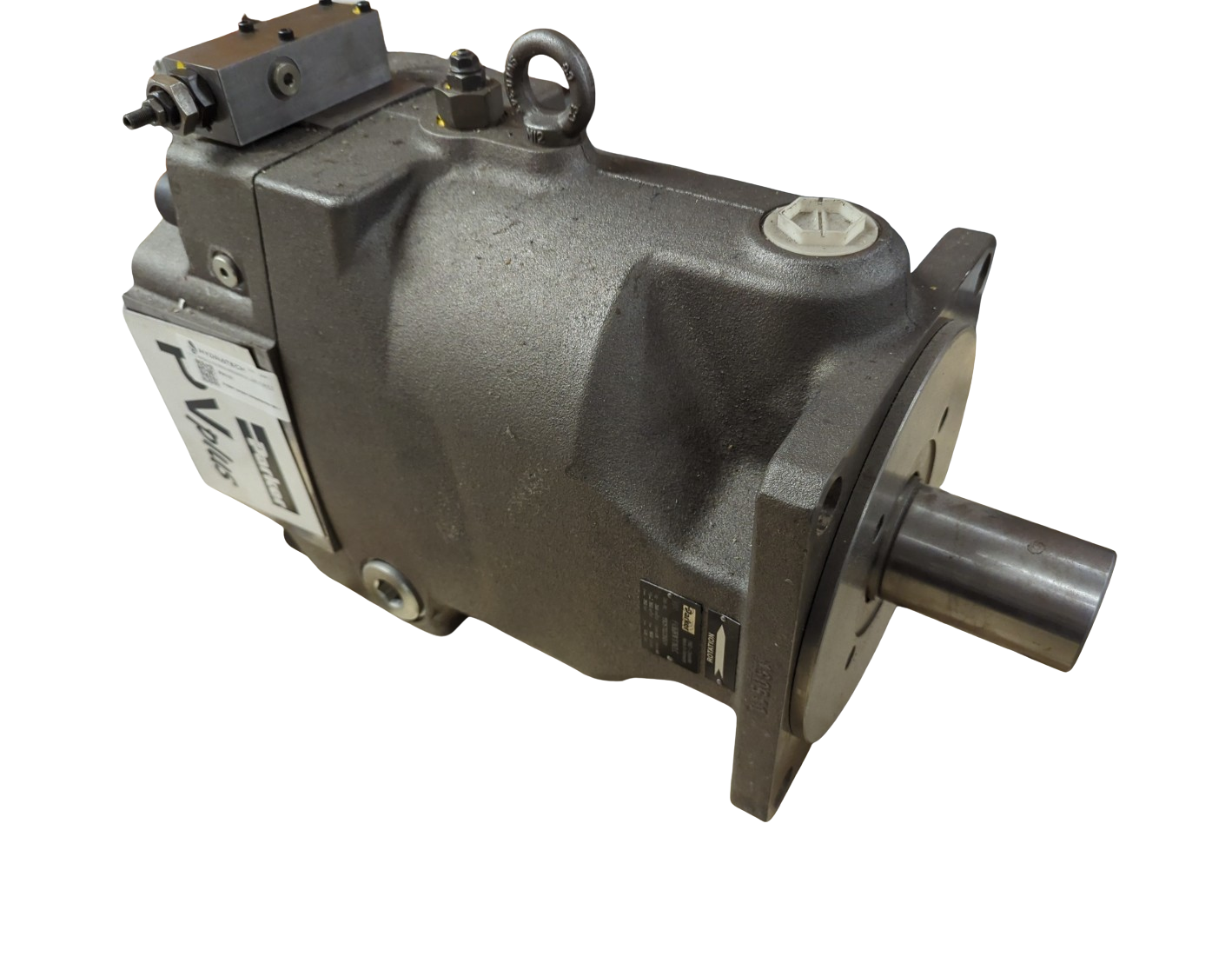

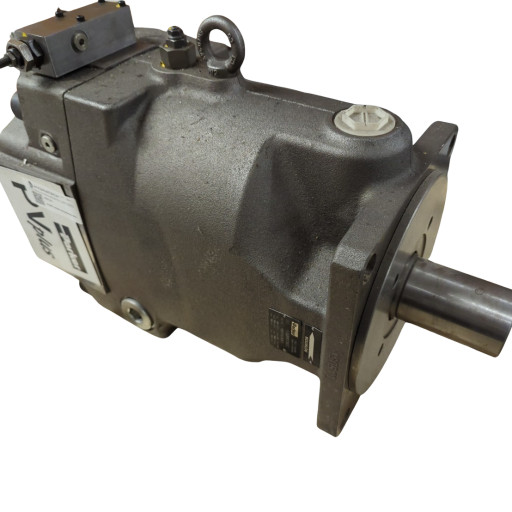

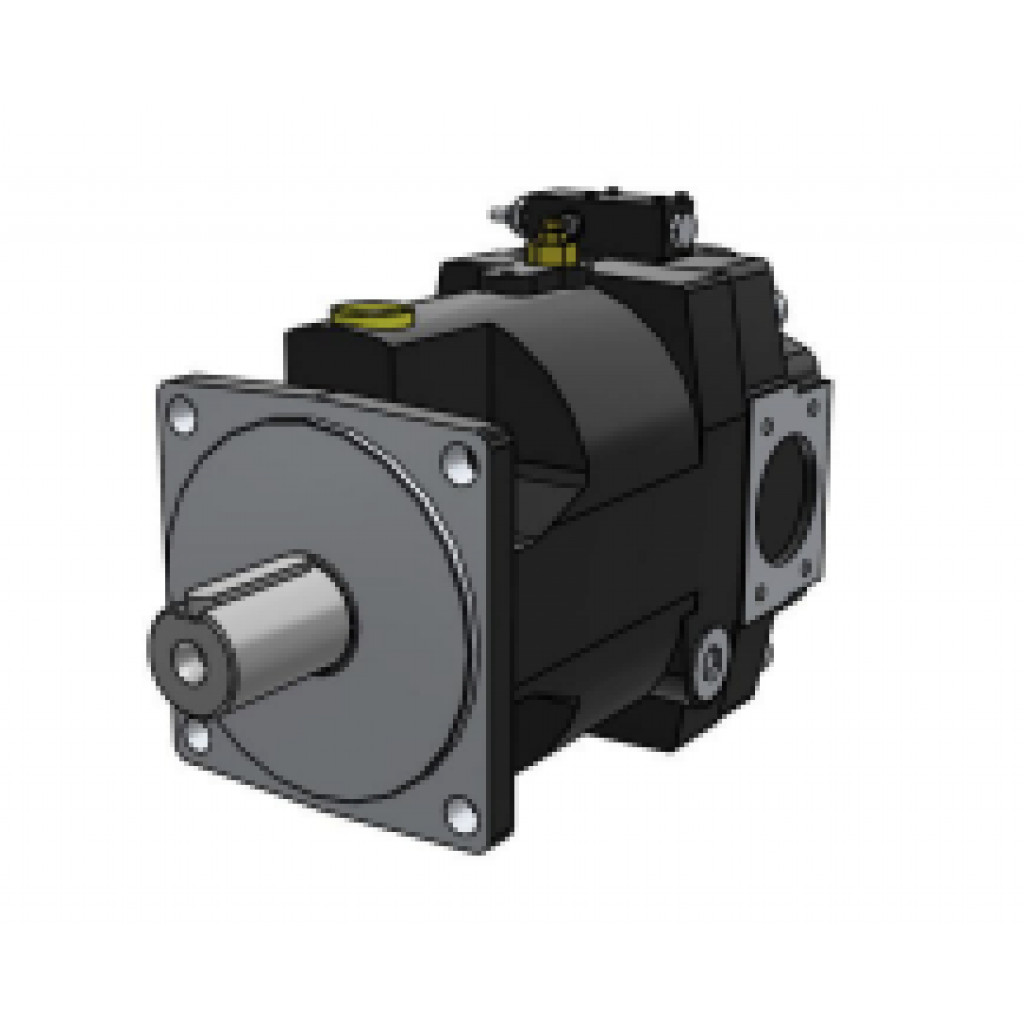

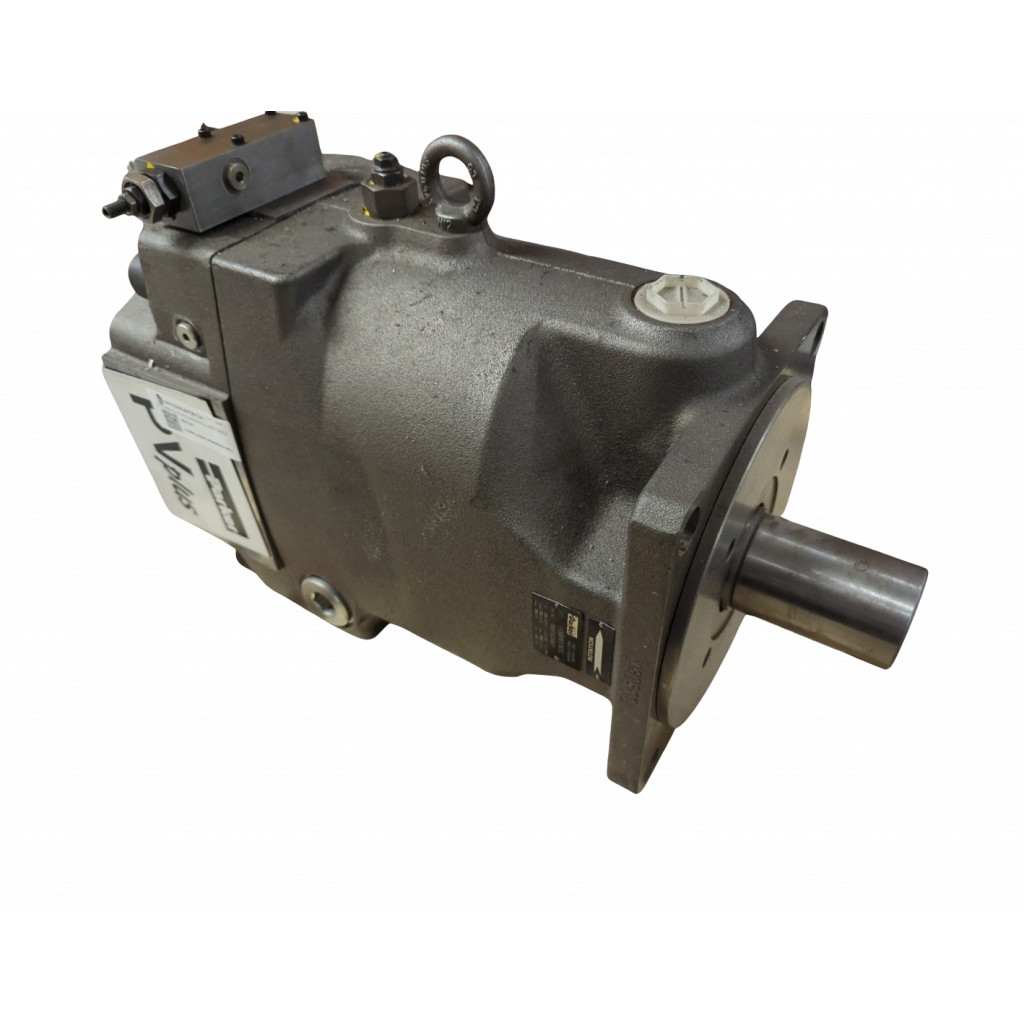

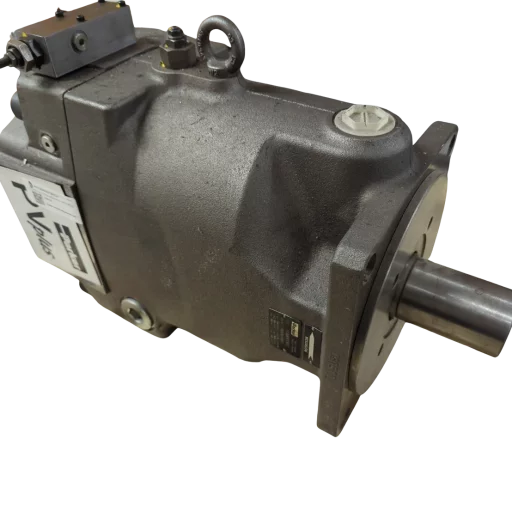

PV360R Variabel stempelpumpe 360 ccm 350/420 bar

Technical Data
Part No. PV360R1K1T1NZLC
Series Series PVplus – Design Series 47
Displacement 360 - 360 [cm3/rev] maximum, Frame Size 6
Rotation R - Clockwise
Variation 1 - Standard
Mounting Interface / Shaft K - metric 4bolt-mount; metric keyed shaft
Ports / Threads 1 - BSPP ports; Metric Threads
Thrudrive pad and coupling T1 - Single Pump prepared for thru drive, no coupling
Seals N - NBR seals / FKM shaftseal
Controls Group Hydromechanical controls with torquelimiter override
Compensation Part 1 Z - 90kW@1500rpm-setting starting PV140
Compensation Part 2 L - Horsepower with pressure compensator
Compensation Part 3 C - Standard with integrated pmax. Pilot
Weight [kg] 180
