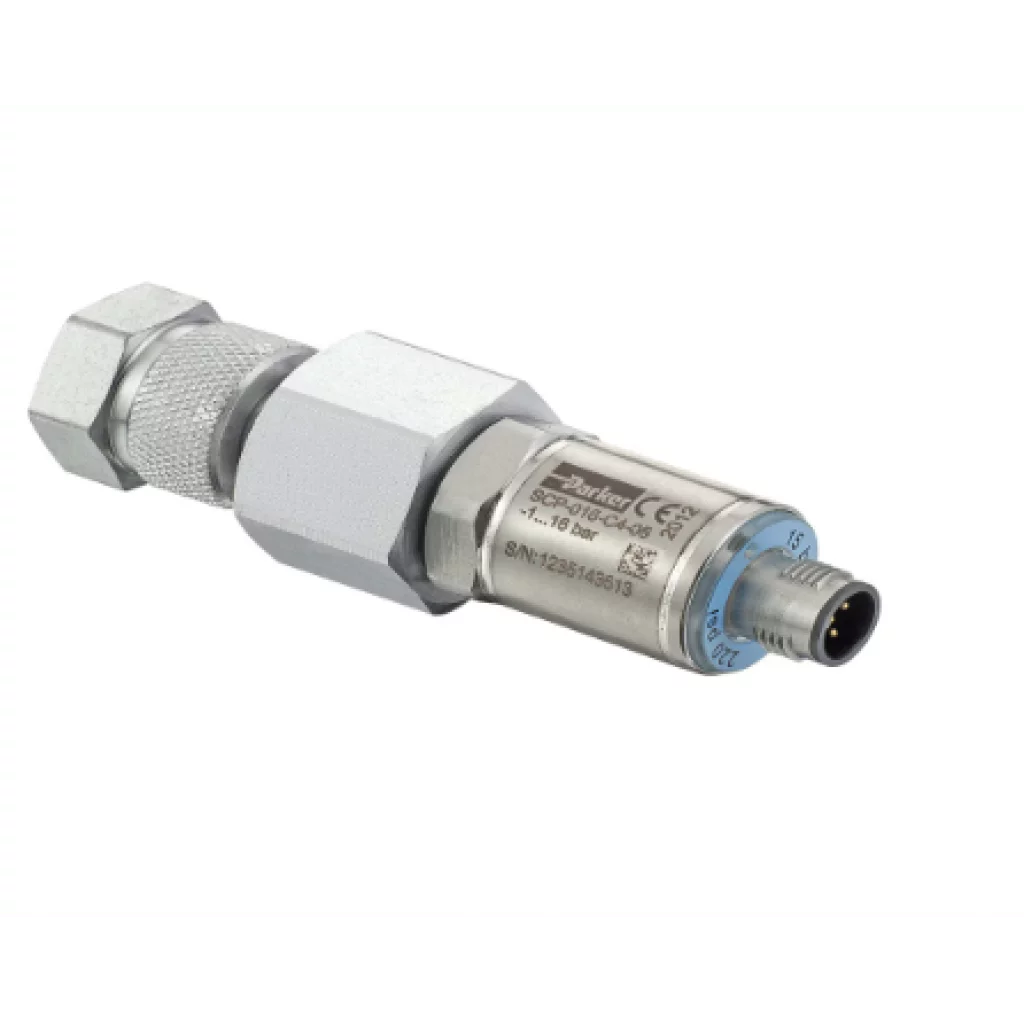

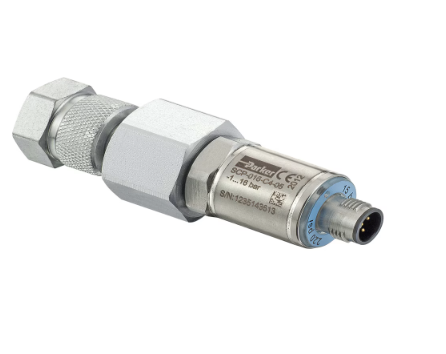

- SCP-400-C4-05 Trykk sensor CAN 400 bar G1/4" med adapter til prøveuttak M16x2
| Port Type: | EMA3 |
| Calibration Type: | None |
| Operating Pressure: | 0 ... 400 bar |
| Output Type: | CAN signal for hand meters |
| Brand: | SensoControl |
| Division: | High Pressure Connectors Europe Division |
| Industry: | Service applications in mobile and industrial hydraulics |
| Application: | Pressure measurement with SensoControl hand meters. |
| Technology: | DMS |
| Product Type: | Pressure Sensor |
| Product Style: | Diagnostic sensor for hand meters |
| Operating Temperature: | -25…+85 °C |
| Port Size: | M16x2 female |
| Specifications Met: | CE |
| Weight: | approx. 195 g |
| Height: | n/a |
| Length: | n/a |
| Width: | Body diameter 22 mm |
| Accuracy: | ± 0.5 % + 0.2 %/year |
| Electrical Connection: | 5-pin connector |
| Operating Pressure: | 0 … 400 bar |
With its fast response times, the pressure sensor SCP guarantees the safe capture of pressure peaks in hydraulic systems. The robust stainless steel design allows a variety of applications, for example cooling water or pneumatics.
All pressure sensors are delivered with a diagnosis adapter (M16x2 or PQC) installed. Fast and safe connection to the hydraulic system is ensured. Installation times are reduced.
Features / Advantages:
• Low height
• Robust stainless steel design
• Response times of 1 ms
• Capturing of pressure peaks
• Accuracy ±0.5 %
Markets:
• Service applications in mobile and industrial hydraulic
