f12-040-ms-sv-s-000-0000-pt-hydr.stempelmotor.malt-svart

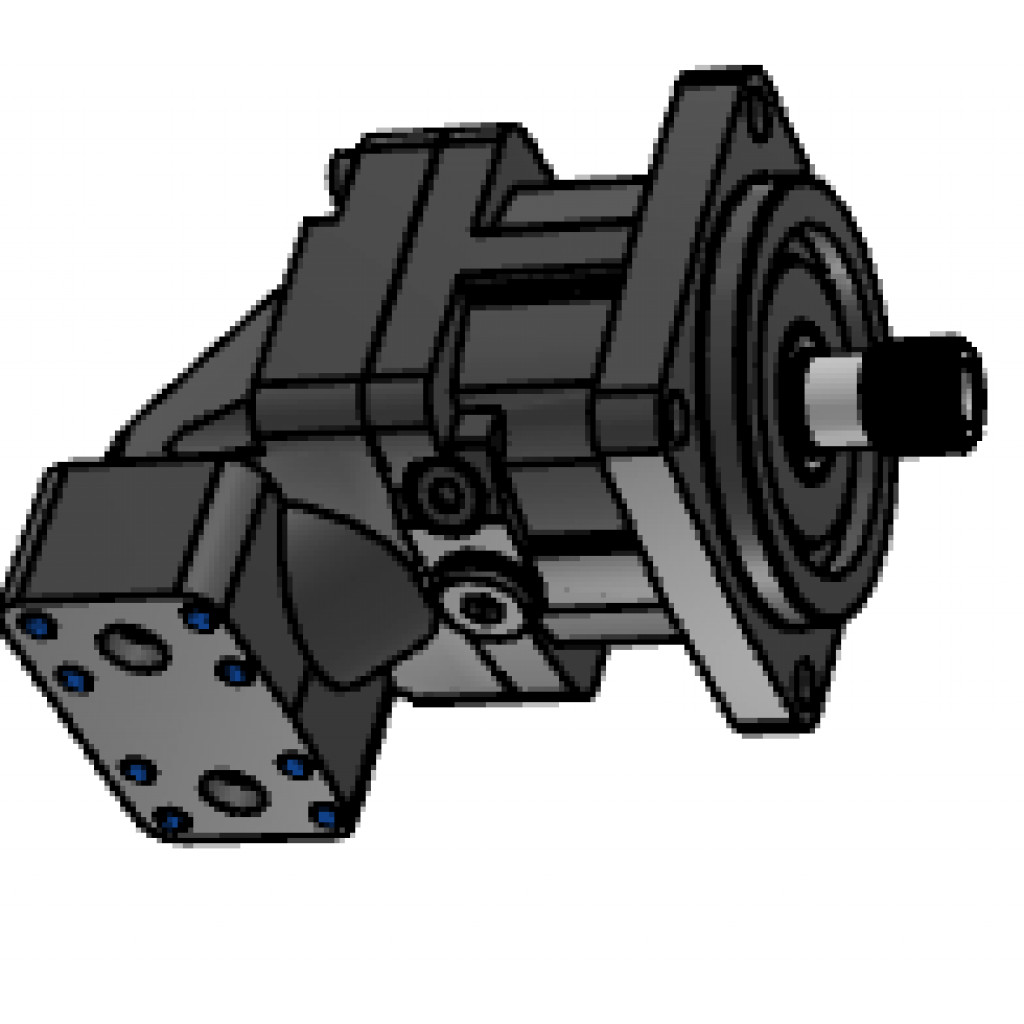

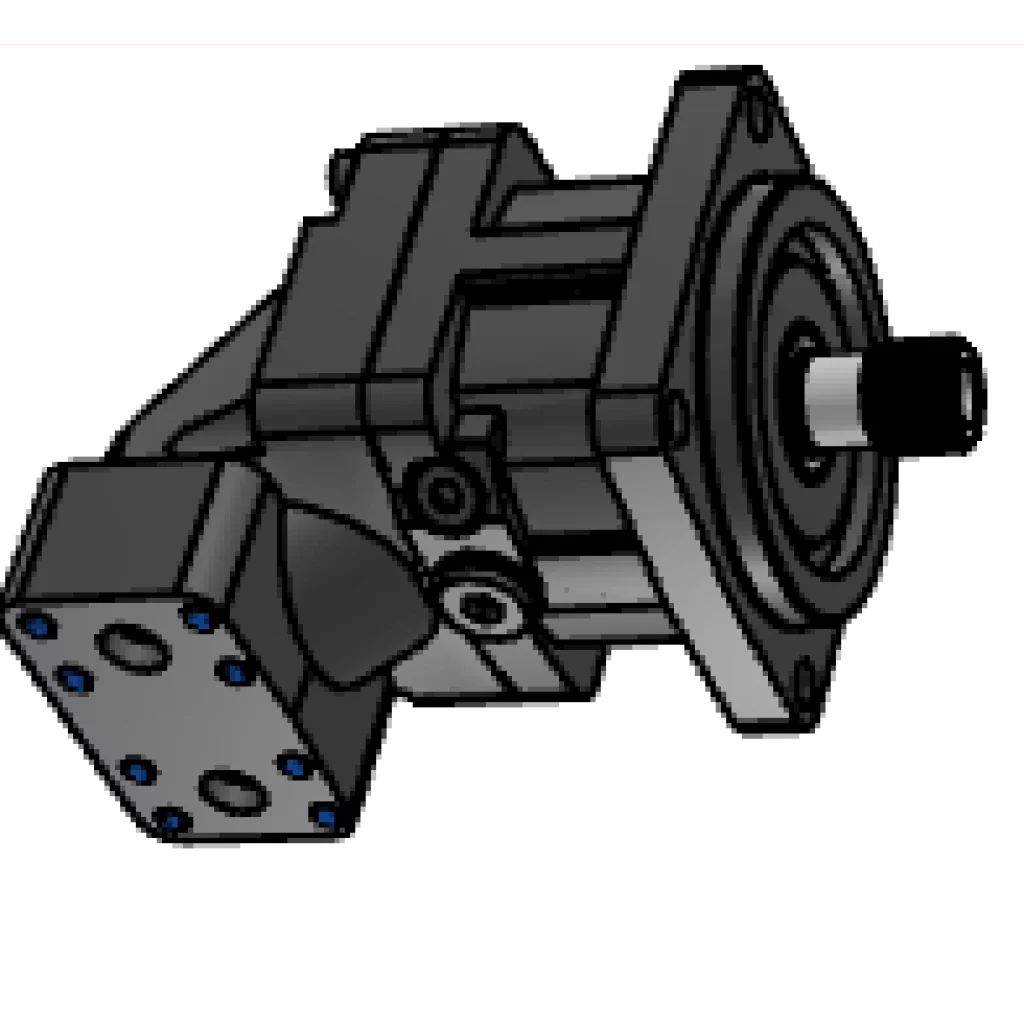

F12-040-MS-SV-S-000-0000-PT Hydr.stempelmotor.Malt svart

Produsent: Parker Hannifin

Continuous pressure : ≤ 450 bar; Intermittent peaks : ≤ 480 bar Max speed : 6,100–6,300 RPM (up to 7,300 RPM capab.. mer

Lager: 2 stk

Varenummer:PH1488

Kategorier: Stempelmotor

Del produktet

Continuous pressure: ≤ 450 bar;
Intermittent peaks: ≤ 480 bar
Max speed: 6,100–6,300 RPM (up to 7,300 RPM capable)
Torque: ~10 Nm/100 bar (turn3search)
Flow: ~252 L/min (67 GPM) continuous
Mounting: SAE C flange (127 mm), 4-bolt
Shaft: SAE C, splined, 14T 12/24 DP
Ports:
- A/B: SAE ¾″ (ISO 6162)
- C: 7/8″-14 ORB
- D: ¾″-16 ORB

Liter pr minutt
Vekt	17 kg

Dokument	Størrelse
FF11-F12_MSG30-8249-UK.pdf	11,57 MB

Dokument	Størrelse
PH1488 F12-040-MS-SV-S-000-0000-PT (1).pdf	1,07 MB
