    f11-010-mb-cv-k-000-000-p0-hydr.stempelmotor

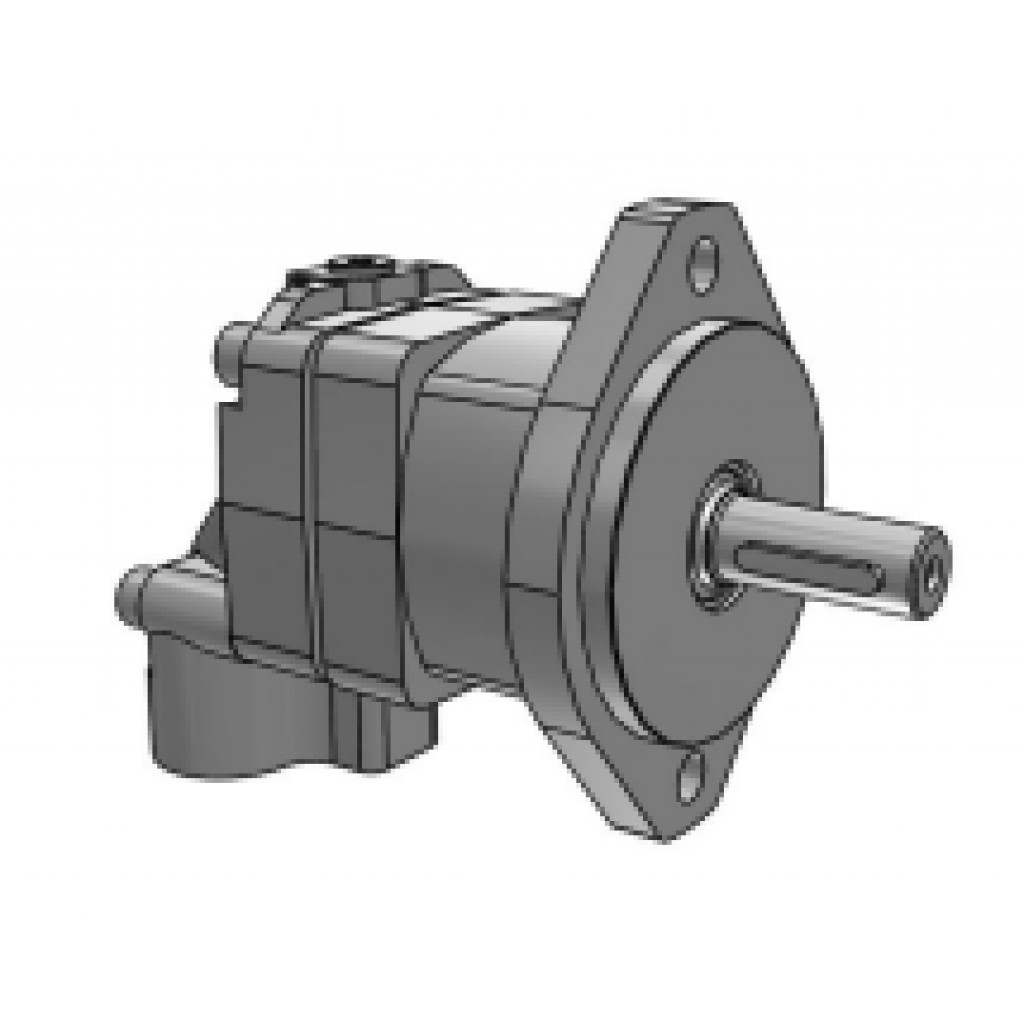

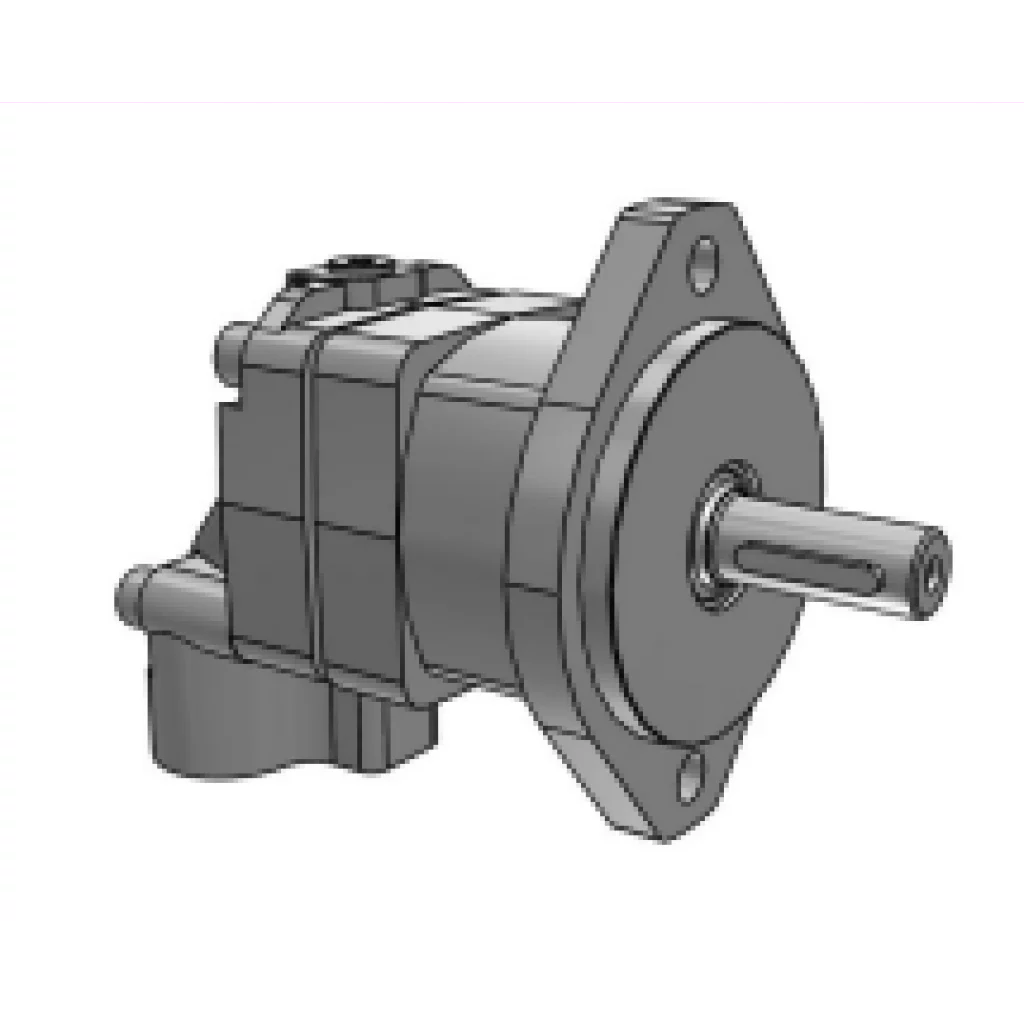

    F11-010-MB-CV-K-000-000-P0 Hydr.stempelmotor

    Produsent: Parker Hannifin

    Technical Data Part No. F11-010-MB-CV-K-000-0000-P0 Series F11/F12/F10 Size F11 Displacement 010 - 9.8 cc / 0.59 cu.in. Function M - .. mer

    Lager: 6 stk

    Varenummer:PH1425

    Kategorier: Stempelmotor

    Del produktet


    Technical Data
    Part No. F11-010-MB-CV-K-000-0000-P0
    Series F11/F12/F10
    Size F11
    Displacement 010 - 9.8 cc / 0.59 cu.in.
    Function M - Motor
    Main Ports B - ISO 1179-1
    Mounting Flange C - CETOP Flange
    Shaft Seal V - FPM, High Pressure, High Temperature
    Shaft K - DIN 6885
    Version Number 000 - Standard
    Option 1 0000 - Standard
    Pressure

    Option 2 P0 - Standard, prepared for speed sensor
    Weight [kg] 6.5

    Liter pr minutt
    Dokument Størrelse
    PH1425_F11-010-MB-CV-K-000-0000-P0.pdf 946,27 KB
