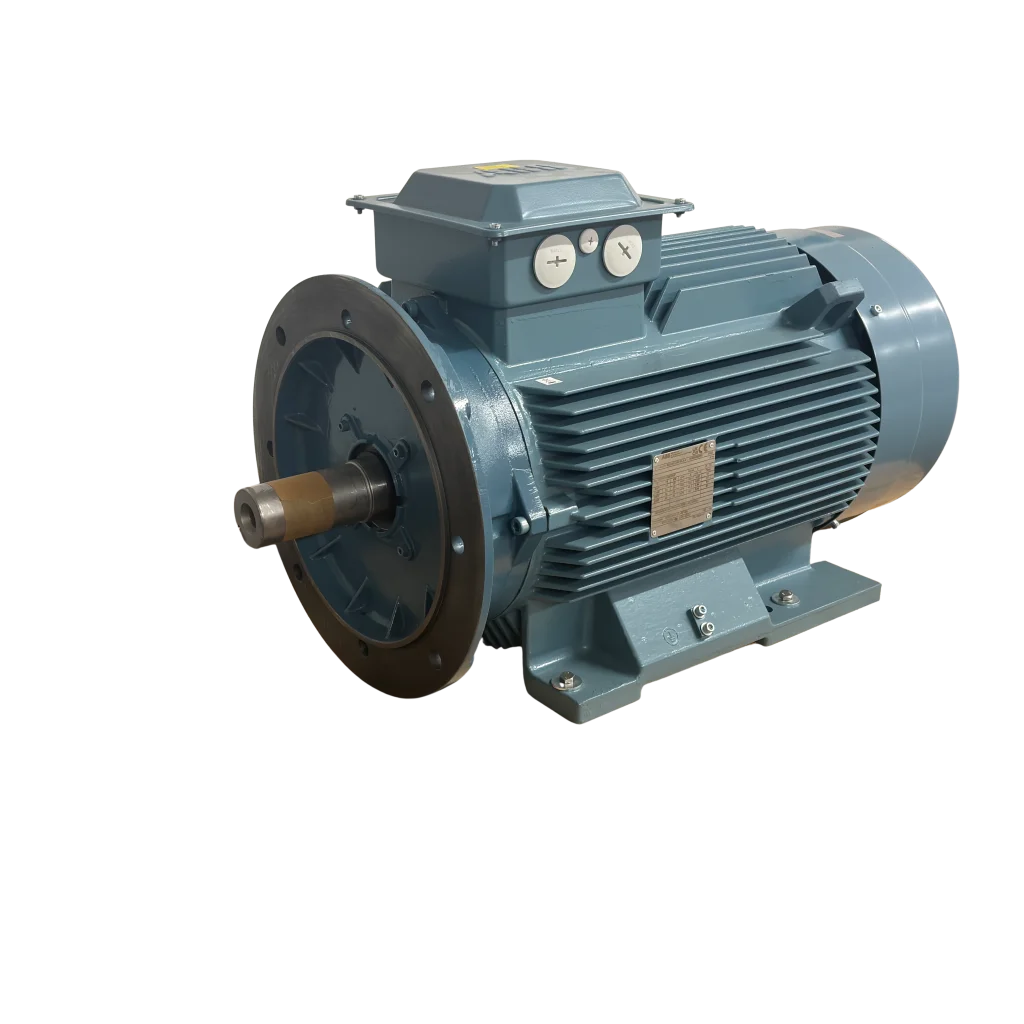

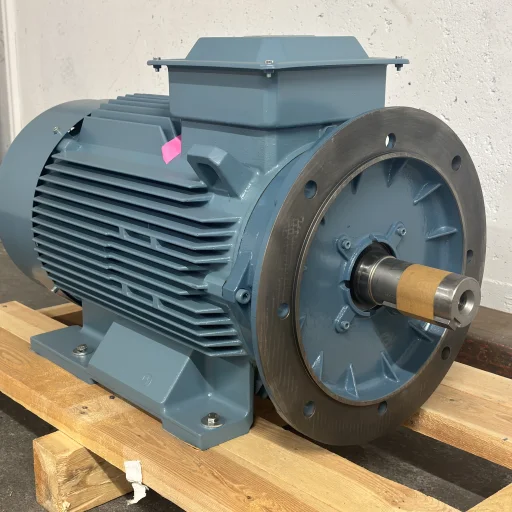

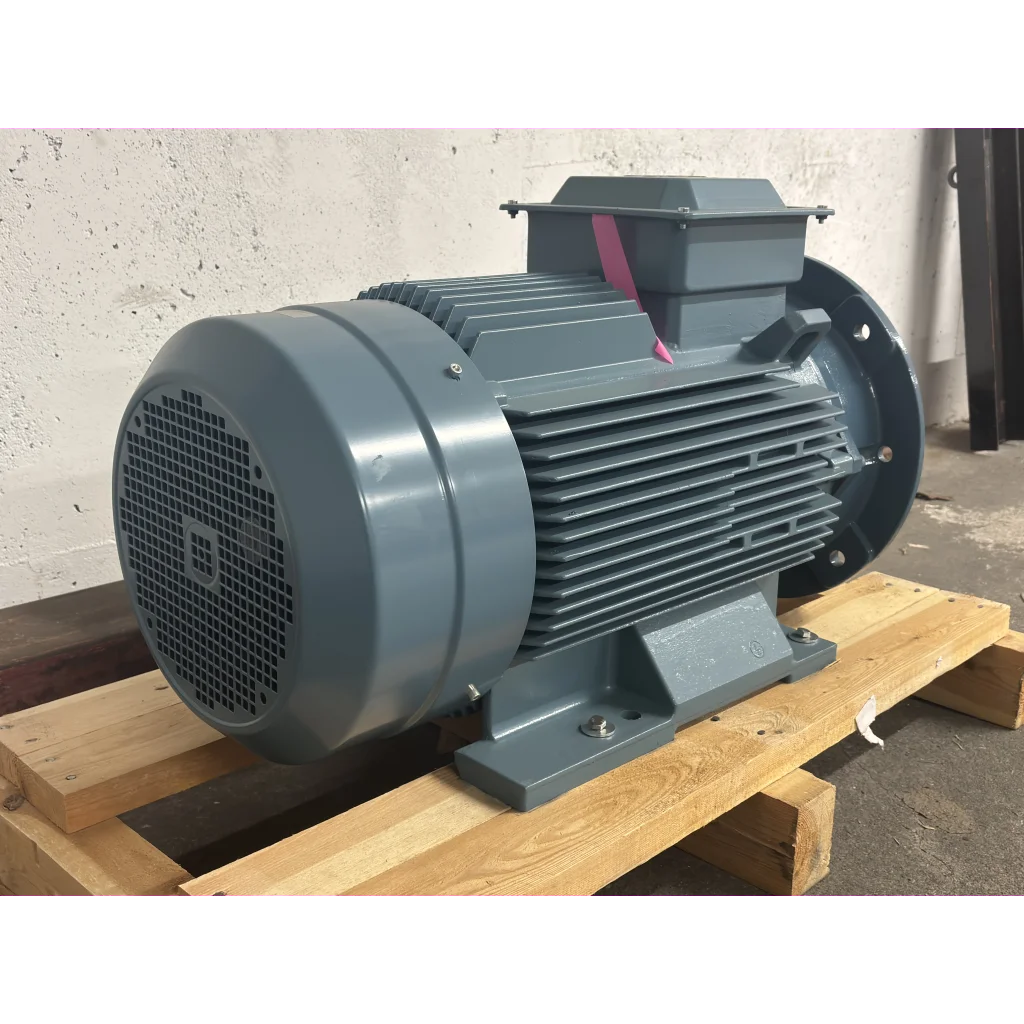

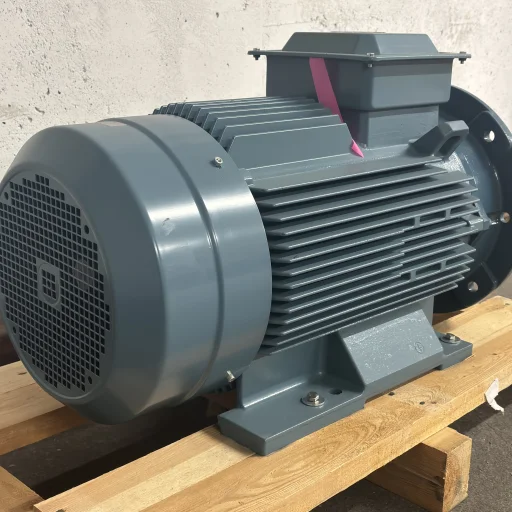

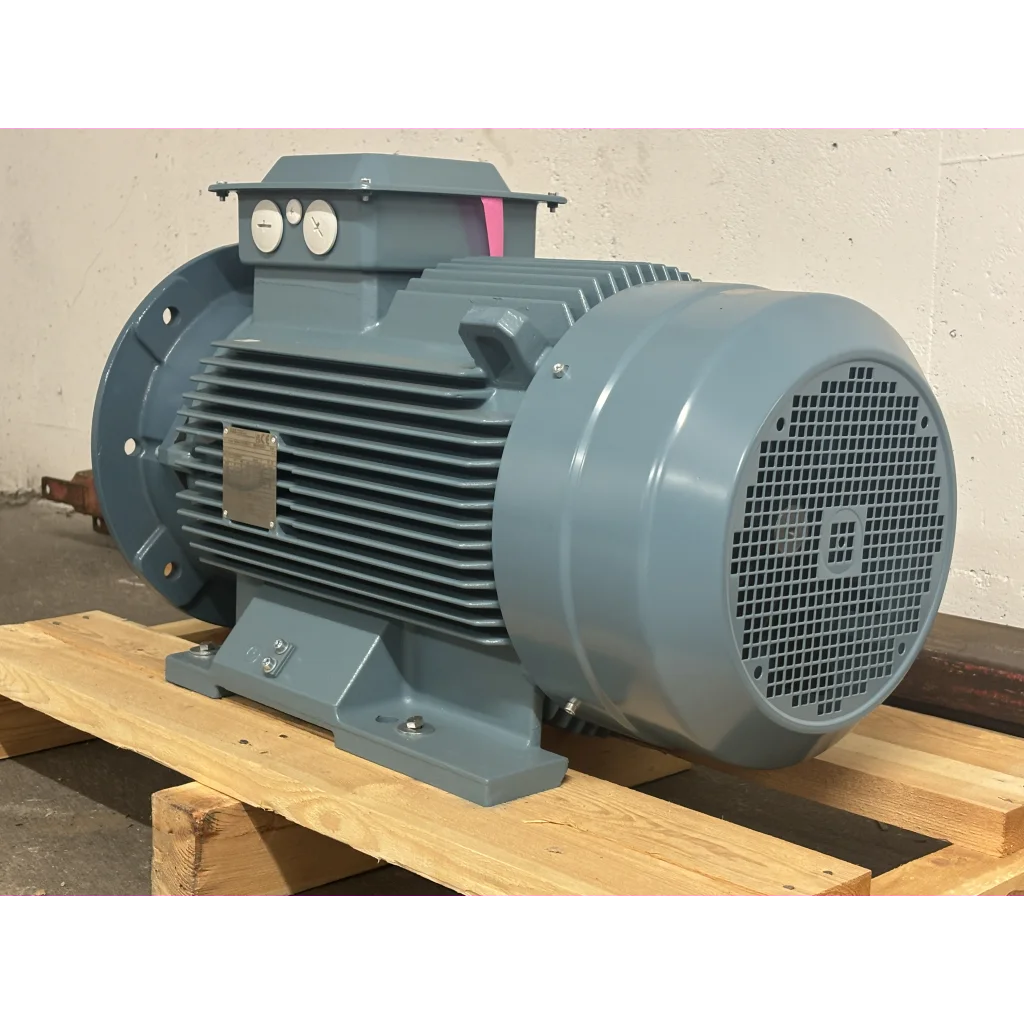

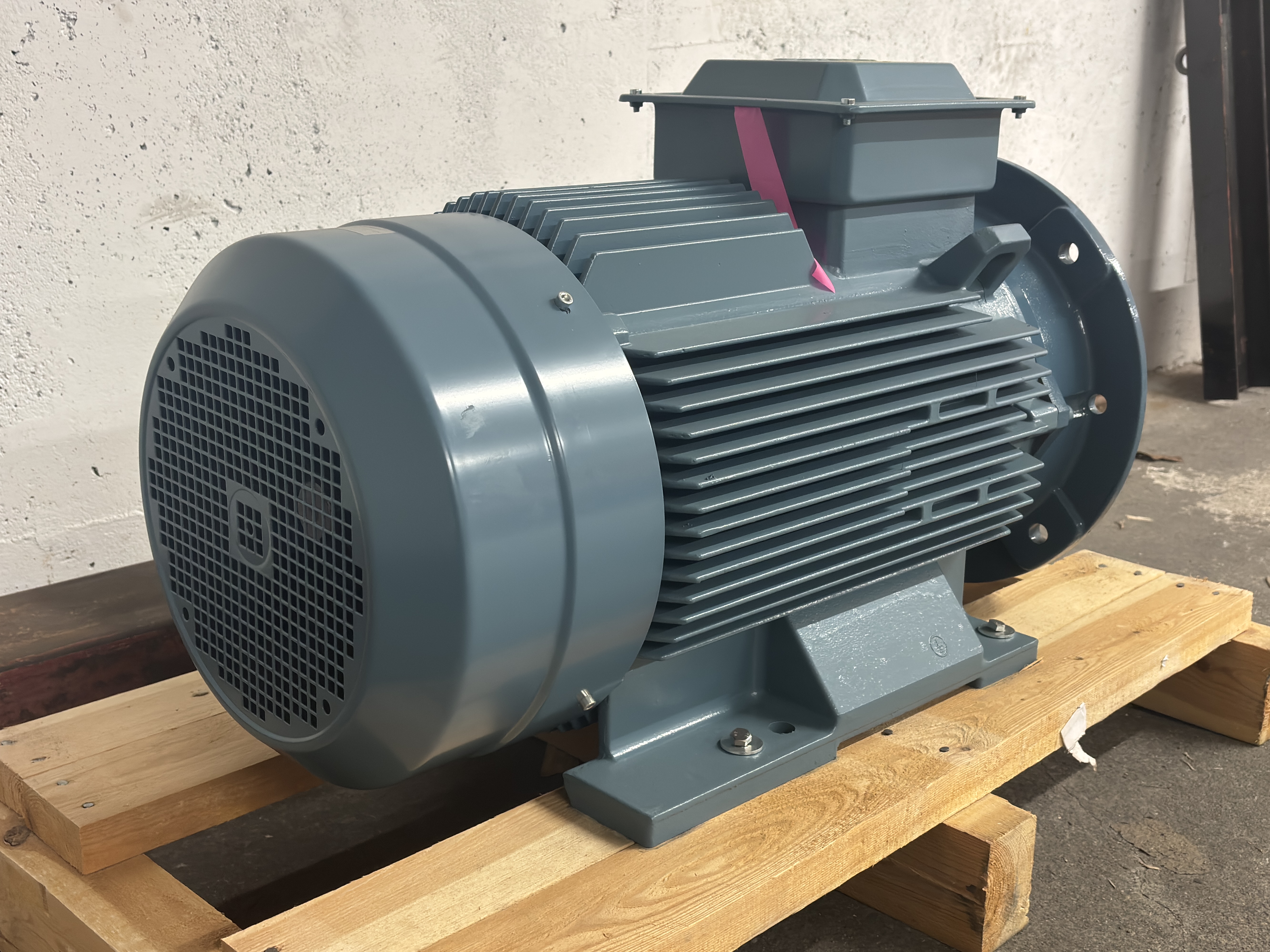

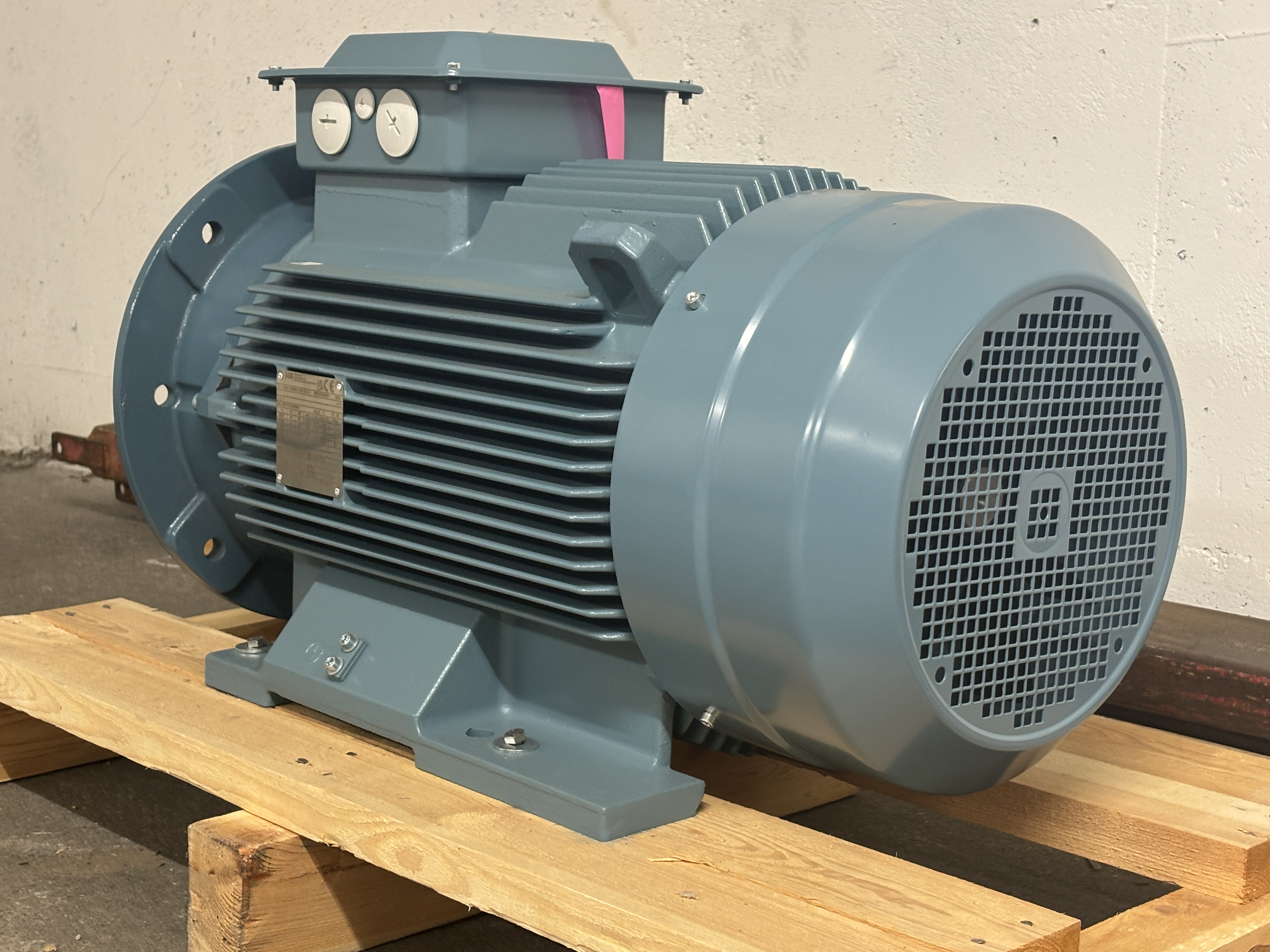

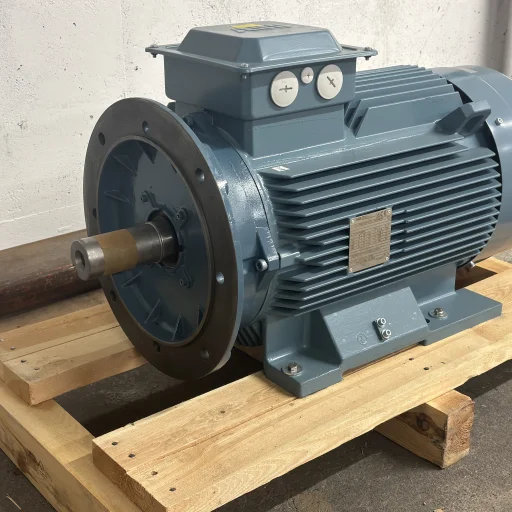

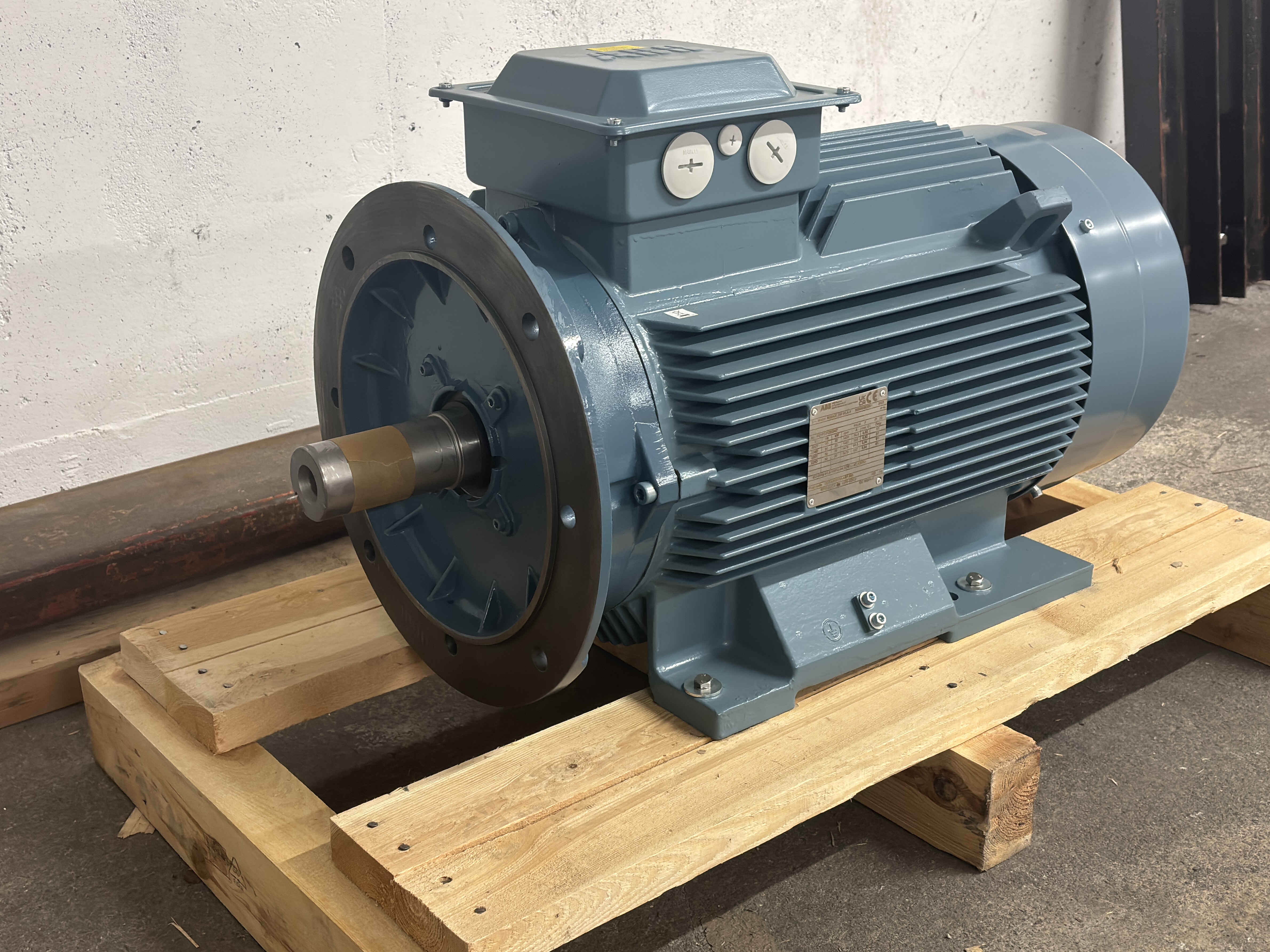

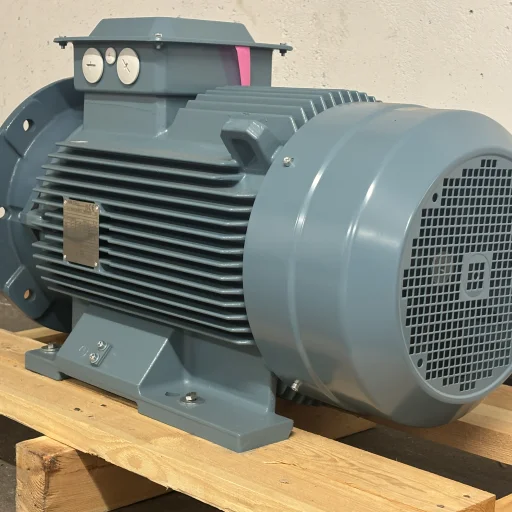

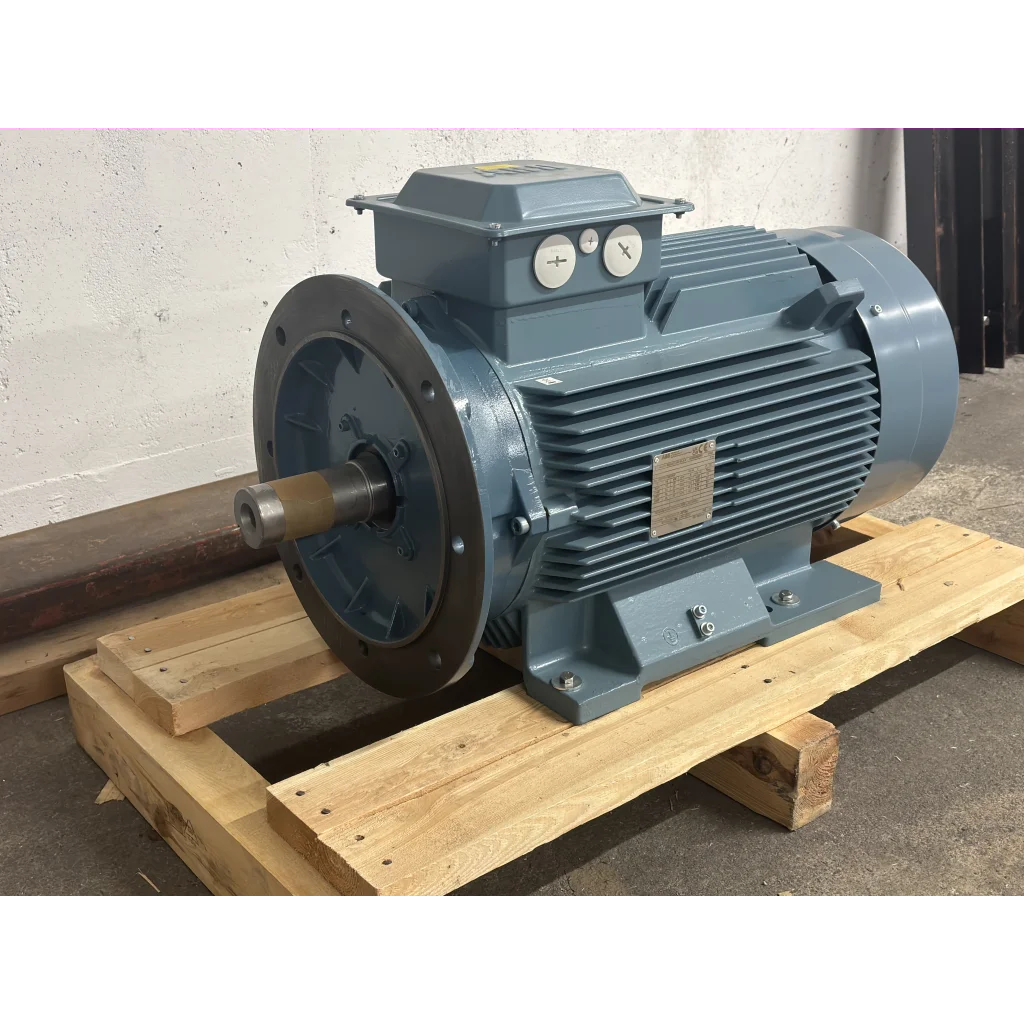

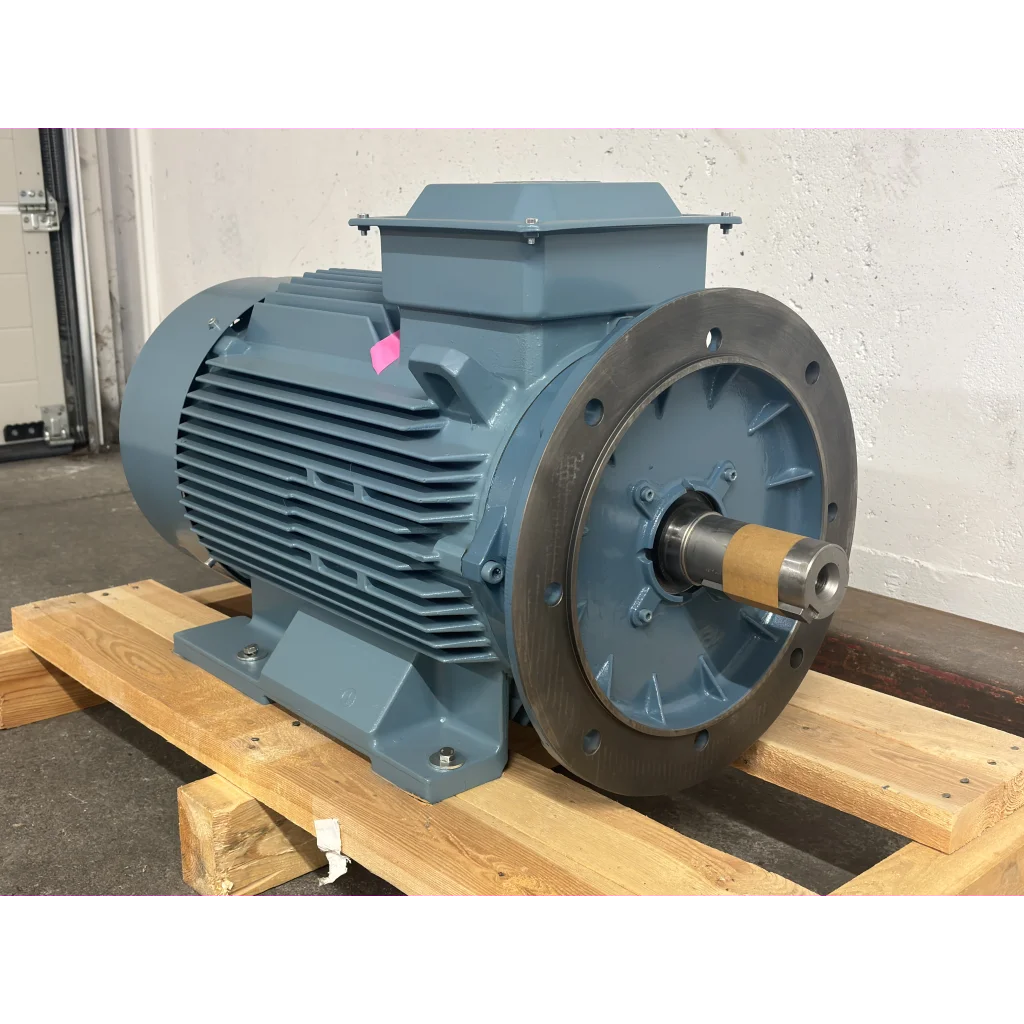

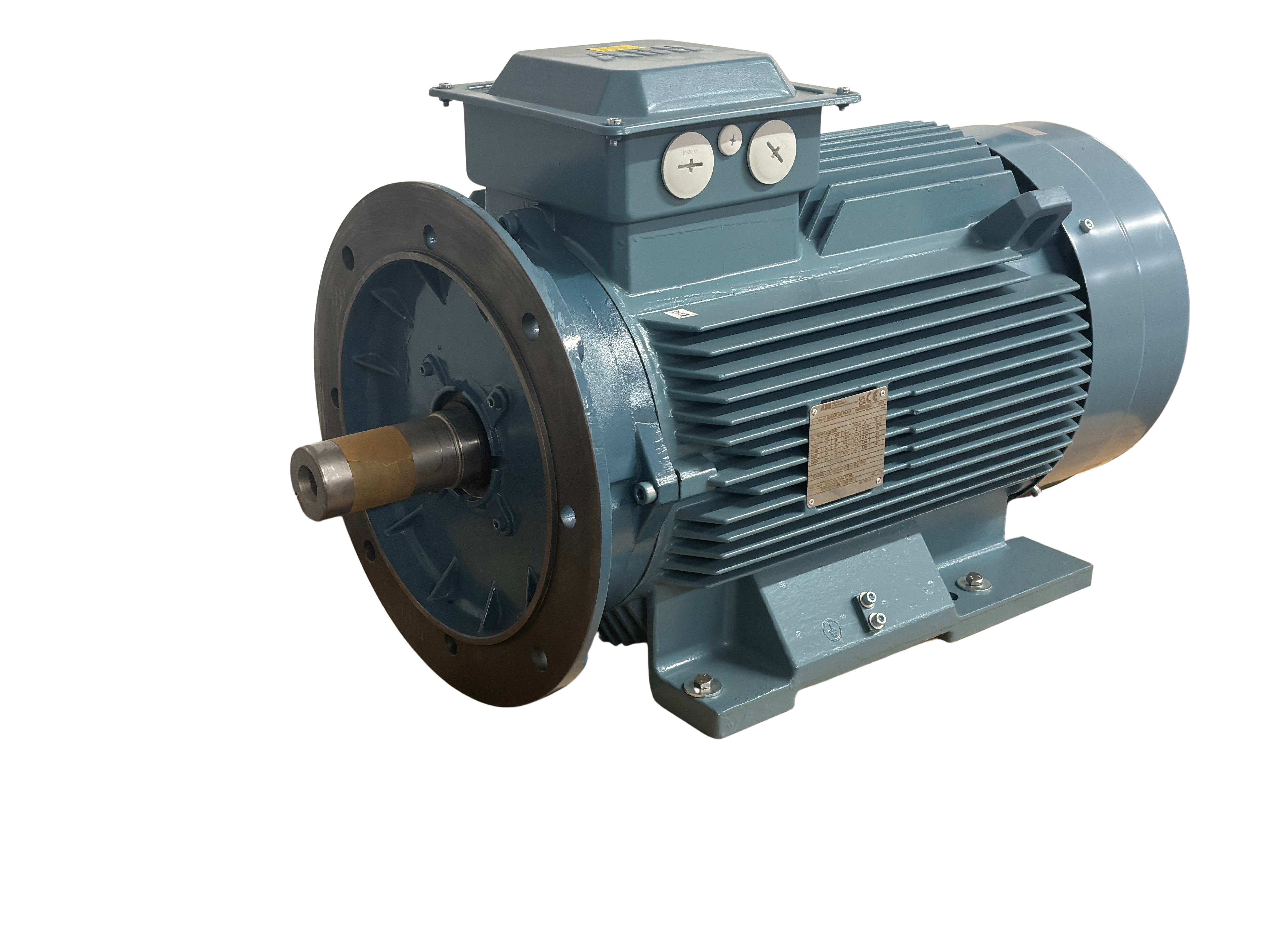

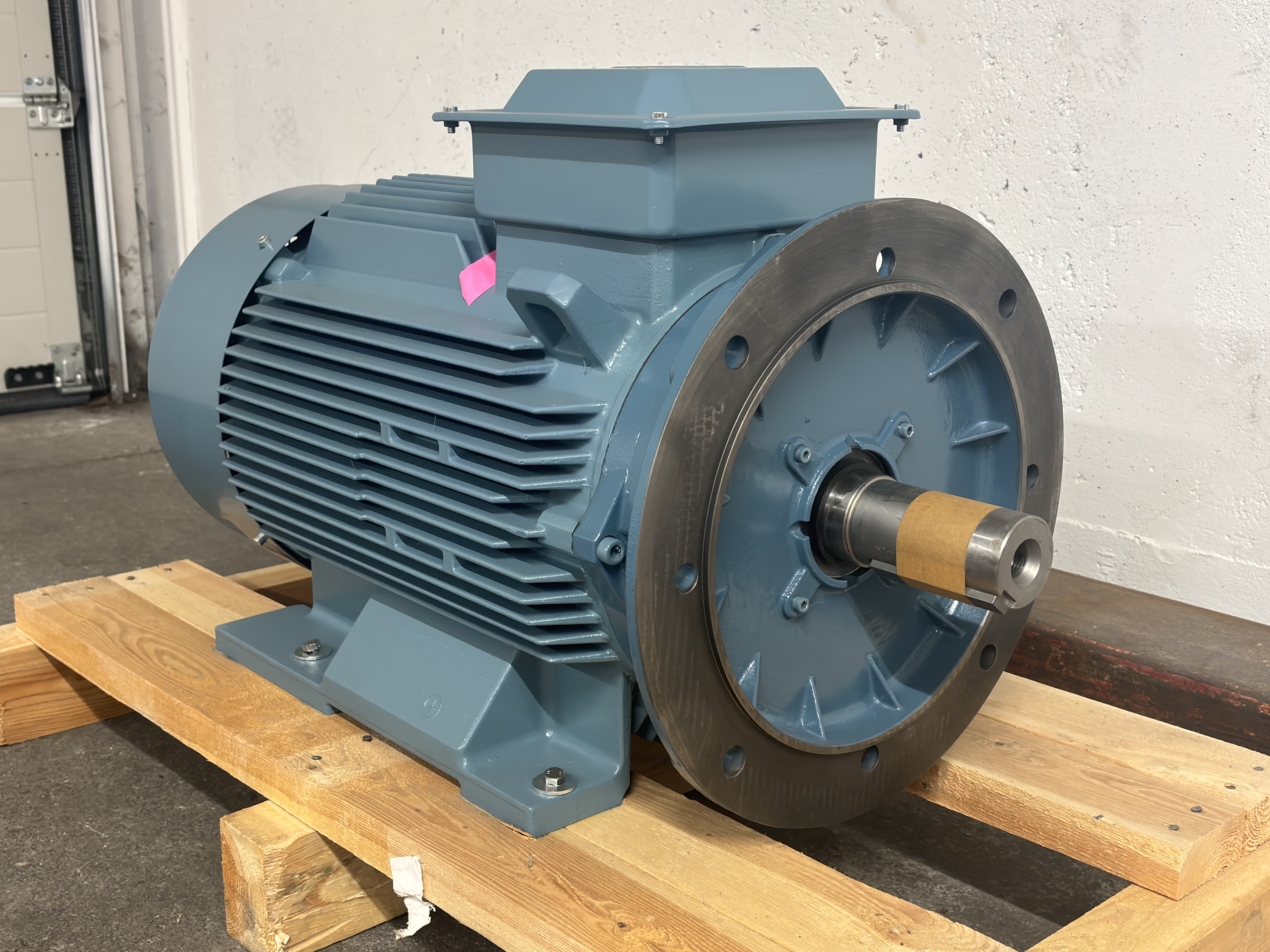

El.motor M2BAX 200L 30kW 4P 2/4V 50Hz B35 PTC IE3 IP55

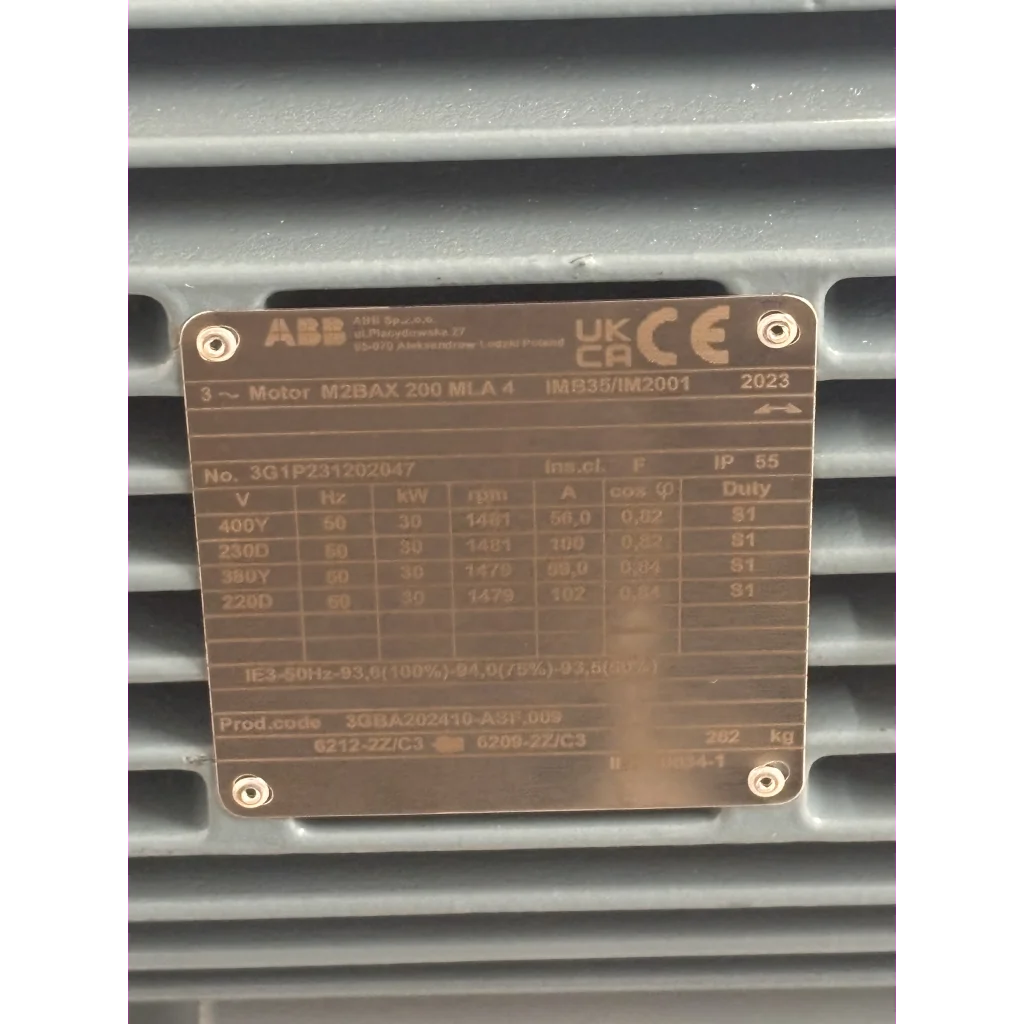

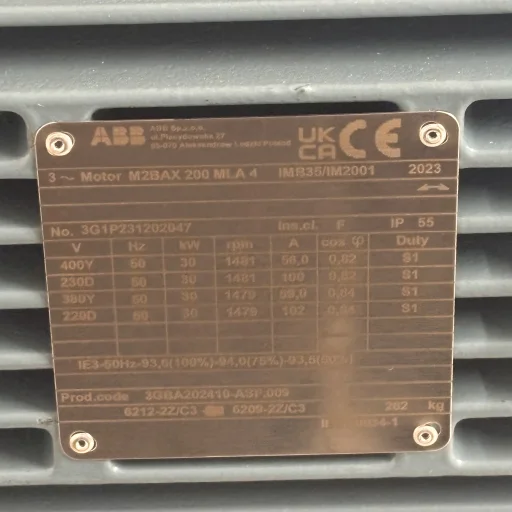

Power Voltage Conn. Freq. Current Speed Temp
Rise Eff. Class Efficiency Power
Factor
(kW) (V) (Hz) (A) (rpm) (%)
30 380 Y 50 59 1479 B IE3 93.6 0.84
30 230 D 50 100 1481 B IE3 93.6 0.82
30 220 D 50 102 1479 B IE3 93.6 0.84
30 400 Y 50 56 1481 B IE3 93.6 0.82
Poles: 4
Mounting: IM2001 IMB35
IntProtection: IP55
CoolMethod: IC411
Insulation Class: F
Net weight: 282
Customs Tariff No: 85015230
Frame Material: Cast Iron
Ambient Temp: 40
Altitude: 1000
Duty: S1
Additional options
009 IM 2001 foot/flange mounted, IEC flange, from IM 1001 (B35 from B3).
