    PP-11A-30-B-L - Trykkreduserings-/avlastningsventil - T-11A - 40 l/min - 3.5-105 bar
    pp-11a-30-b-l-trykkreduserings-avlastningsventil-t-11a-40-l-min-3.5-105-bar

    PP-11A-30-B-L - Trykkreduserings-/avlastningsventil - T-11A - 40 l/min - 3.5-105 bar

    Produsent: Winner Hydraulics

    Pilot operated pressure reducing/relieving valve assemblyInlet pressur 350 bar.Adjustment ranges 3,5-105 bar Standard Settings 14 barMaxim.. mer

    Ikke på lager.

    Varenummer:WC1035

    Kategorier: Trykkreguleringsventil

    Del produktet
    Pilot operated pressure reducing/relieving valve assembly
    Inlet pressur 350 bar.
    Adjustment ranges 3,5-105 bar
    Standard Settings 14 bar
    Maximum Differential=210 bar
    Nominal flow 0 to 40 l/m

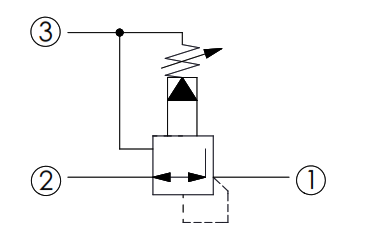

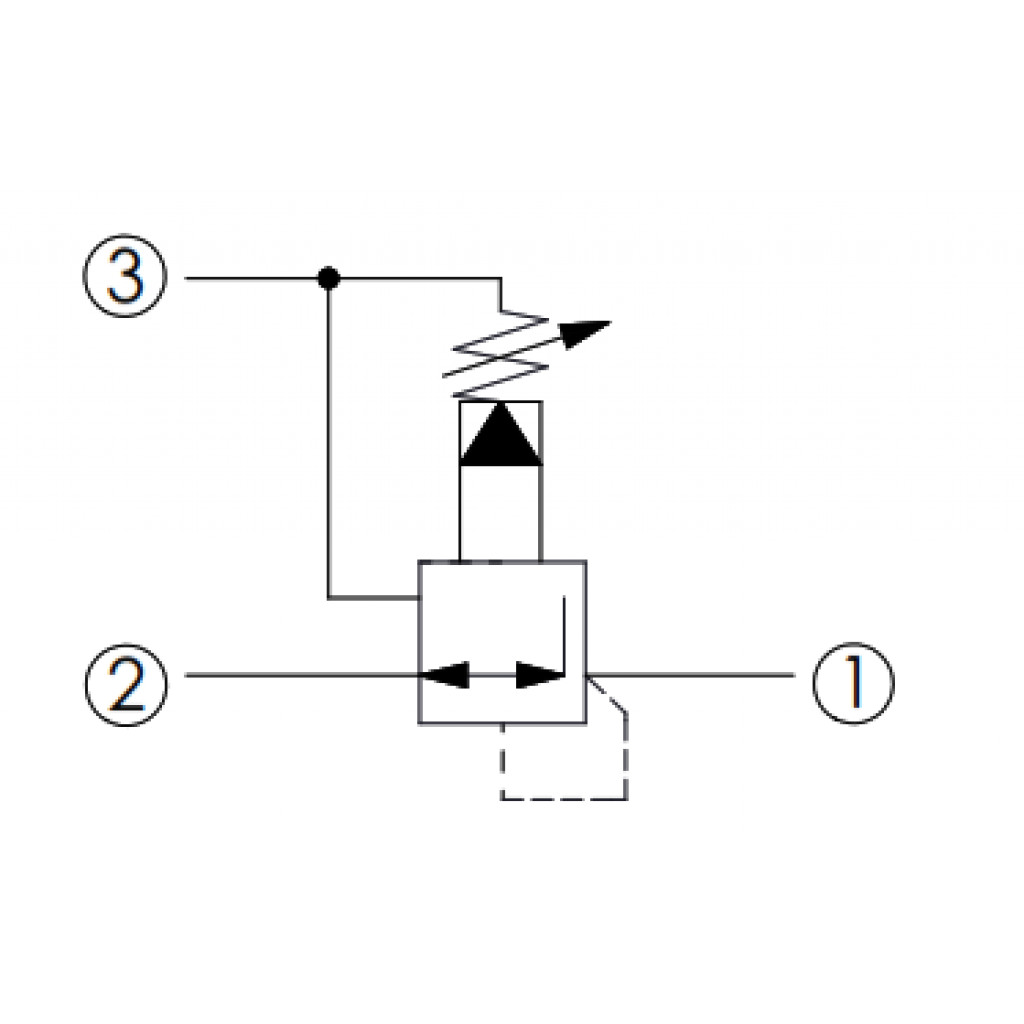

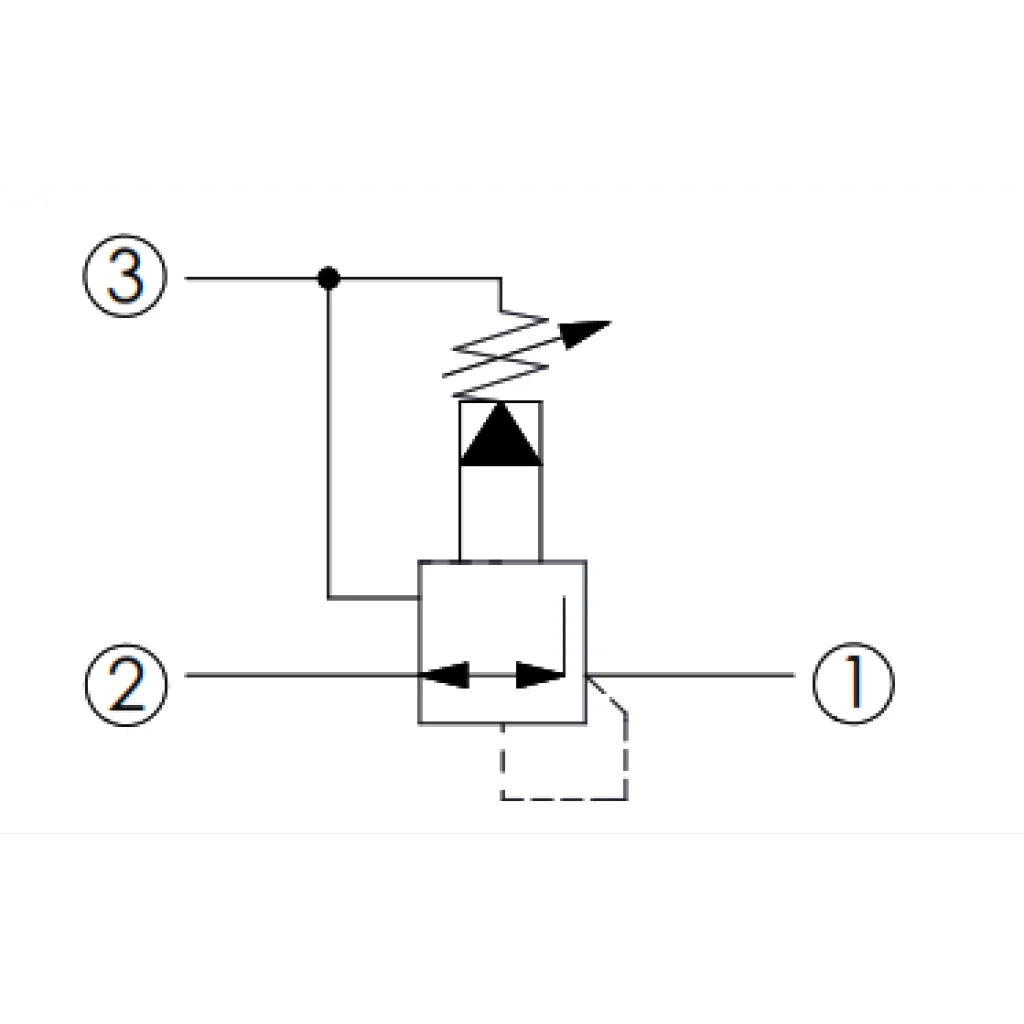

    This is a pilot-operated, spool-type reducing/relieving valve, it can be used in any application where a regulated pressure lower than system pressure is required. It allows bidirectional flow between port 2 and port 1. When the pressure at port 1 exceeds the pressure setting, the spool shifts to restrict flow at port 2, regulating the pressure at port 1. If the pressure at port 1 continues to rise above the valve setting, the spool shifts further to relieve excess pressure through port 3 (tank) until the set pressure is restored.

    • When X=33, the lowest pressure will be a bit higher than standard.
    • Please note the pressure differential between inlet and reducing port when select the proper adjustment range.
    • Pressure at port 3 adds directly to the valve setting at a 1:1 ratio.
    • Working parts are heat-treated and high-precision ground to increase hardness for long life.
    • A variety of seal kit materials for different applications, see seals information under Technical Reference.
    • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is “90/90”.
    • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
    • Winner guarantees that all products performance a 100% functional test before shipment.
    Cavity11A-3
    Rated Flow40 L/min
    Control Pilot Flow0.11 - 0.16 L/min
    Maximum Operating Pressure350 bar
    Valve Hex Size22.22 mm
    Valve Installation Torque40 - 50 Nm
    Adjustment Screw Internal Hex Size4 mm
    Locknut Hex Size14.27 mm
    Locknut Torque9 - 10 Nm
    Weight0.15 kg (Z=L, LP); 0.16 kg (Z=KF)

    performance curve for PP11A pilot-operated, spool-type reducing/relieving valve, showing pressure and flow variations during relieving and reducing conditions, highlighting changes in flow as pressure adjustments are made

    Cavity T-11A
    Materiale
    Type Trykkreduksjon
    Maks flow (l/min) 40
    Trykkområde (bar) 3.5-105
    Maks Trykk (bar) 350
    Dokument Størrelse
    WC1035 datablad.pdf 273,94 KB
    Dokument Størrelse
    PP11A30(33)(35)-L.STEP 2,13 MB
