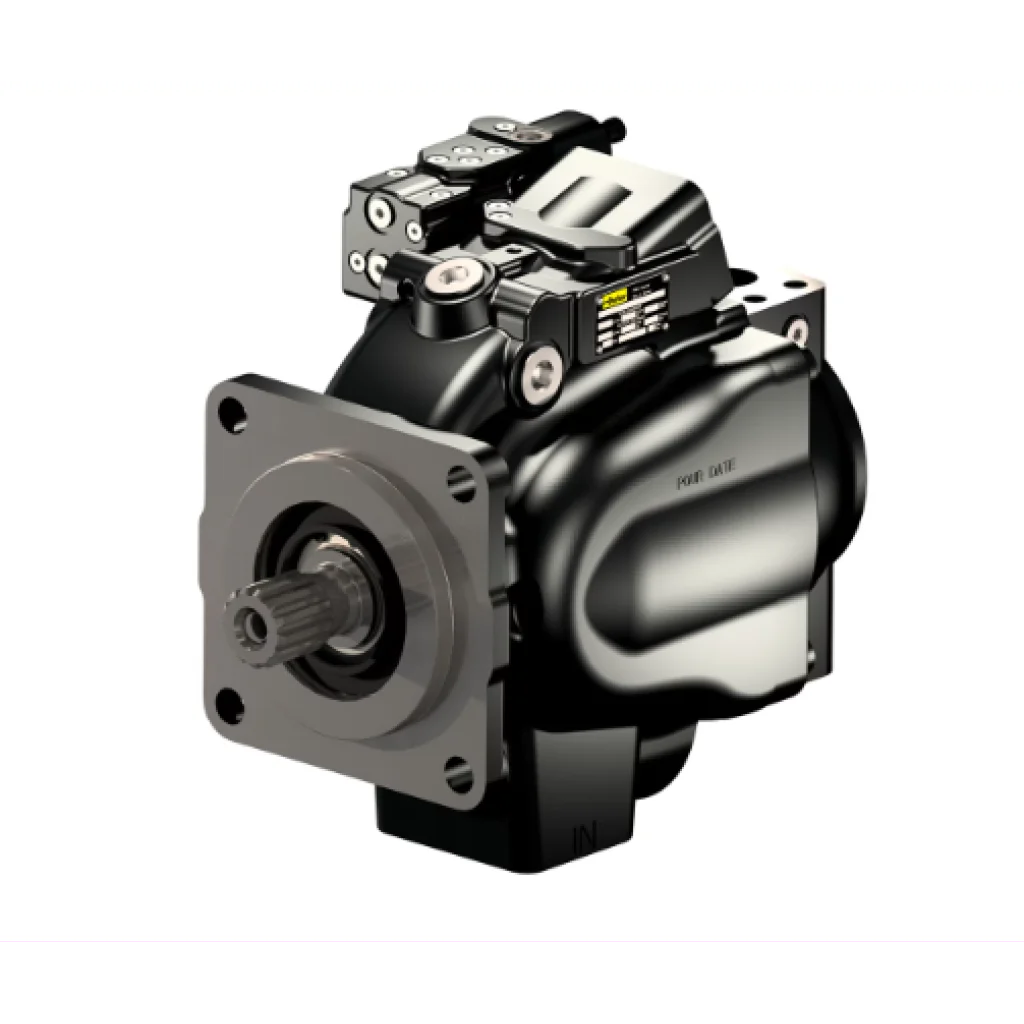

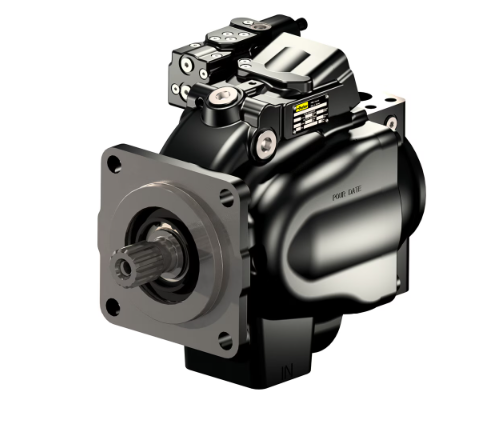

P2105R00C1C10RA20N00C3A1U Variabel stempel pumpe 105 ccm 320/370 bar

Technical Data

Part No.

P2105R00C1C10LA20N00C3A1U

Series

P2/P3 Series

Pump Series

P2 - Standard

Displacement

105 - 105 cc/rev (6.4 cu.in./rev)

Rotation

R - Clockwise (CW)

Max Volume Stop Setting (70% - 100%)

00 - Default (full pump displacement)

Shaft Options

C1 - SAE C Spline

Mounting Flange

C - SAE C Pilot (5 in.)

Pressure Setting of Max Pressure Control [bar/10]

10

Controls

LA - Load sensing (2 spool)/Pmax without bleed orifice

Differential Pressure

20 - DIFFERENTIAL PRESSURE SETTING

Seal Type

N - Nitrile, single shaft seal

Torque Control Setting Low range

N/A

Torque Control Setting High Range

N/A

Torque Set for Pa Pb Lb Controls

00

Through Drive Configuration

C3 - SAE C 4-Bolt with SAE C Spline

Port Location & Threads

A - Side - Inline Flange ports - UN

Multiple Pump Options

1 - Shipped as individual pump

Paint / Special Modifications

U - Unpainted pump
