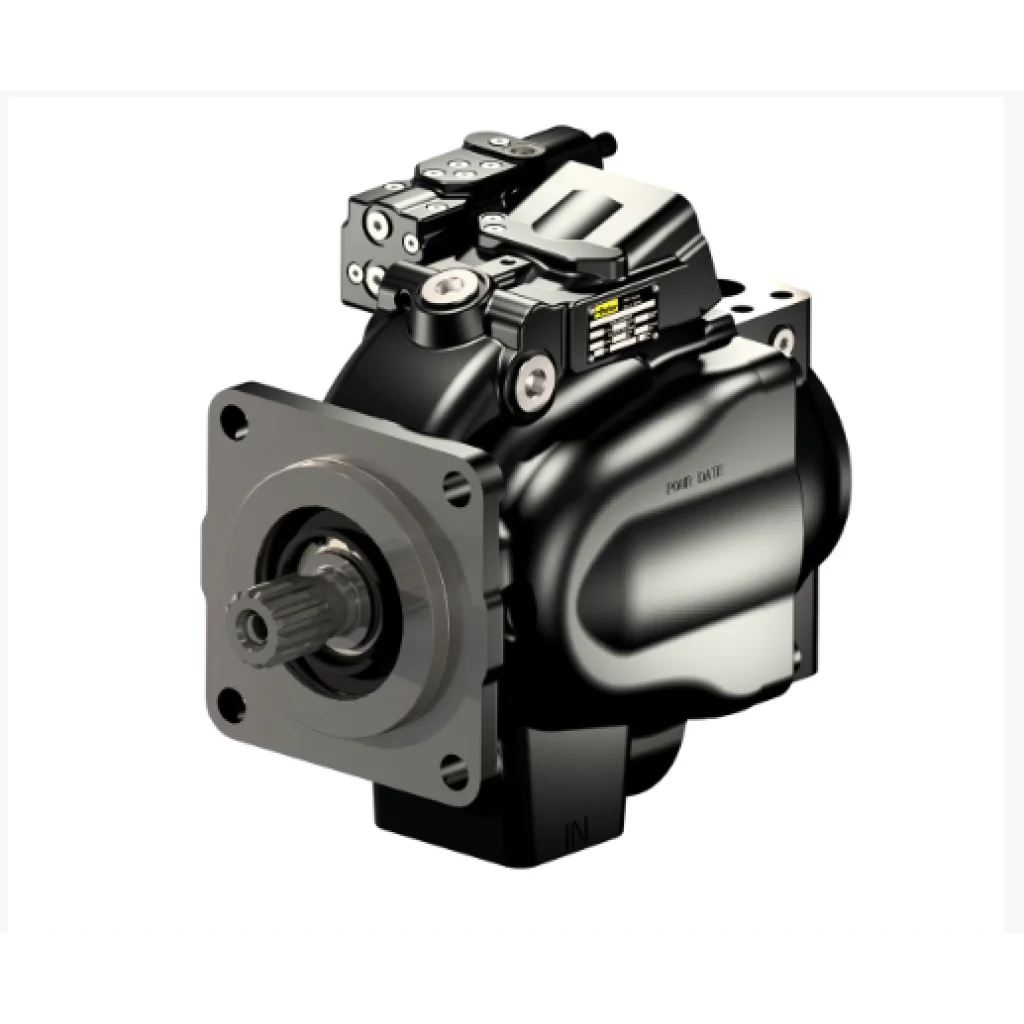

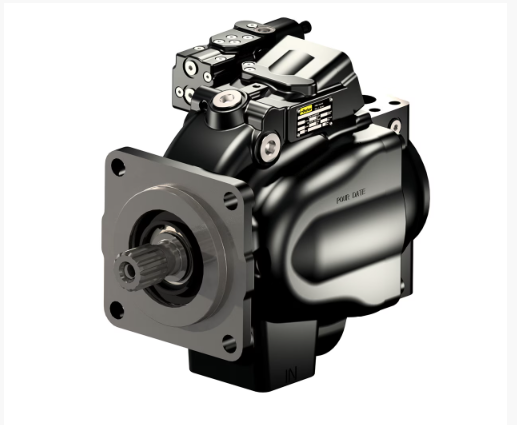

P2145R00D1D20RA20N00T1B1P Variabel Stempel pumpe 350 bar med trykk kompenser kontroller

Technical Data

Part No.

P2145R00D1D20LA20N00T1B1P

Series

P2/P3 Series

Pump Series

P2 - Standard

Displacement

145 - 145 cc/rev (8.8 cu.in./rev)

Rotation

R - Clockwise (CW)

Max Volume Stop Setting (70% - 100%)

00 - Default (full pump displacement)

Shaft Options

D1 - SAE D Spline

Mounting Flange

D - SAE D Pilot (6 in.)

Pressure Setting of Max Pressure Control [bar/10]

20

Controls

LA - Load sensing (2 spool)/Pmax without bleed orifice

Differential Pressure

20 - DIFFERENTIAL PRESSURE SETTING

Seal Type

N - Nitrile, single shaft seal

Torque Control Setting Low range

N/A

Torque Control Setting High Range

N/A

Torque Set for Pa Pb Lb Controls

00

Through Drive Configuration

T1 - Prepared for Through Drive (cover plate)

Port Location & Threads

B - Side - Inline Flange Ports - ISO 6149 / Metric threads

Multiple Pump Options

1 - Shipped as individual pump

Paint / Special Modifications

P - Pump Painted Black
