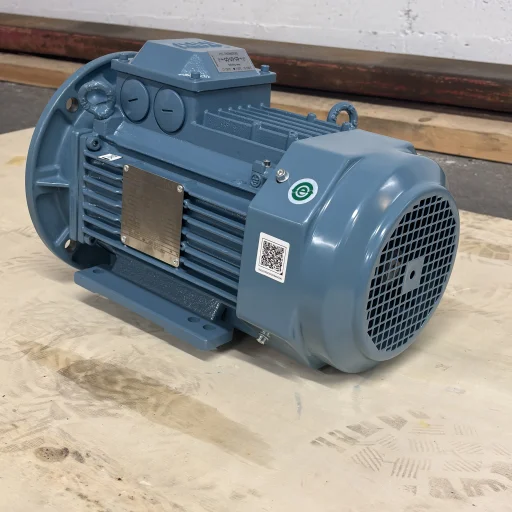

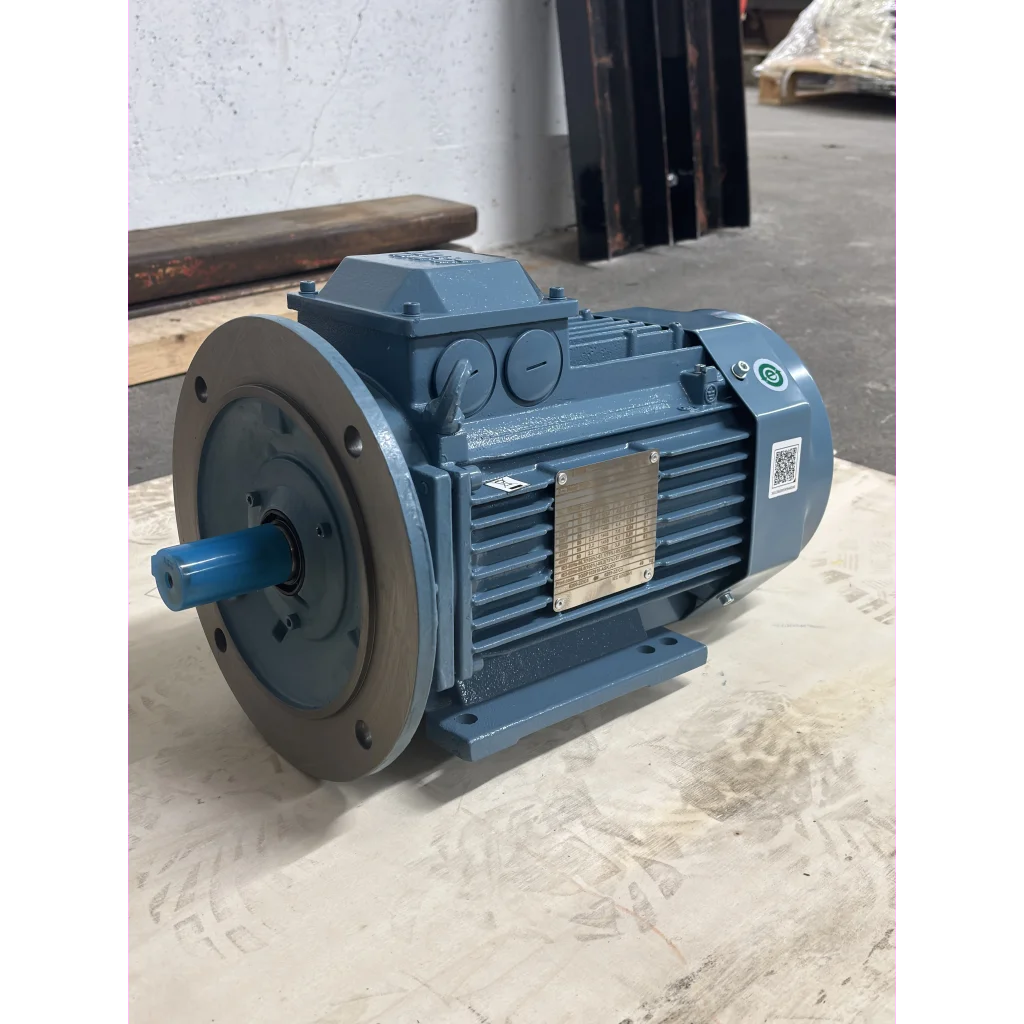

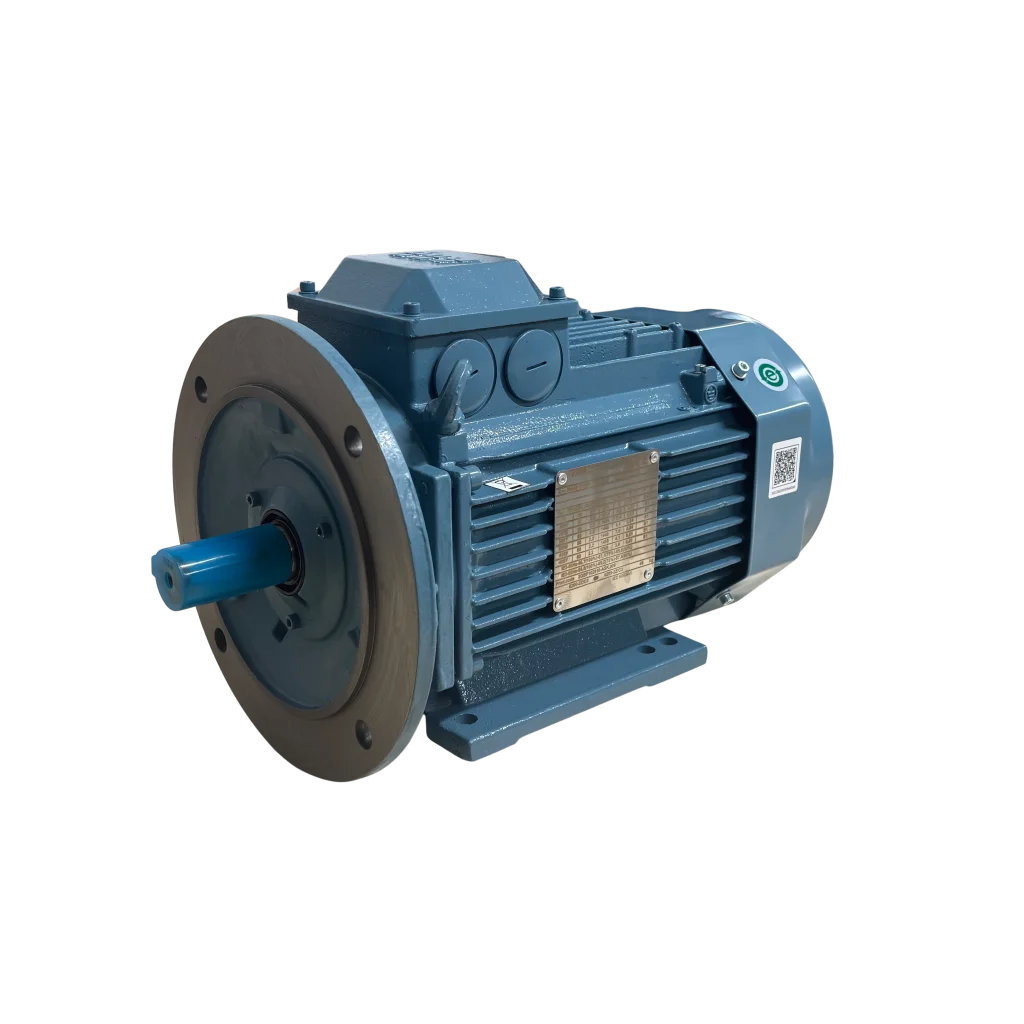

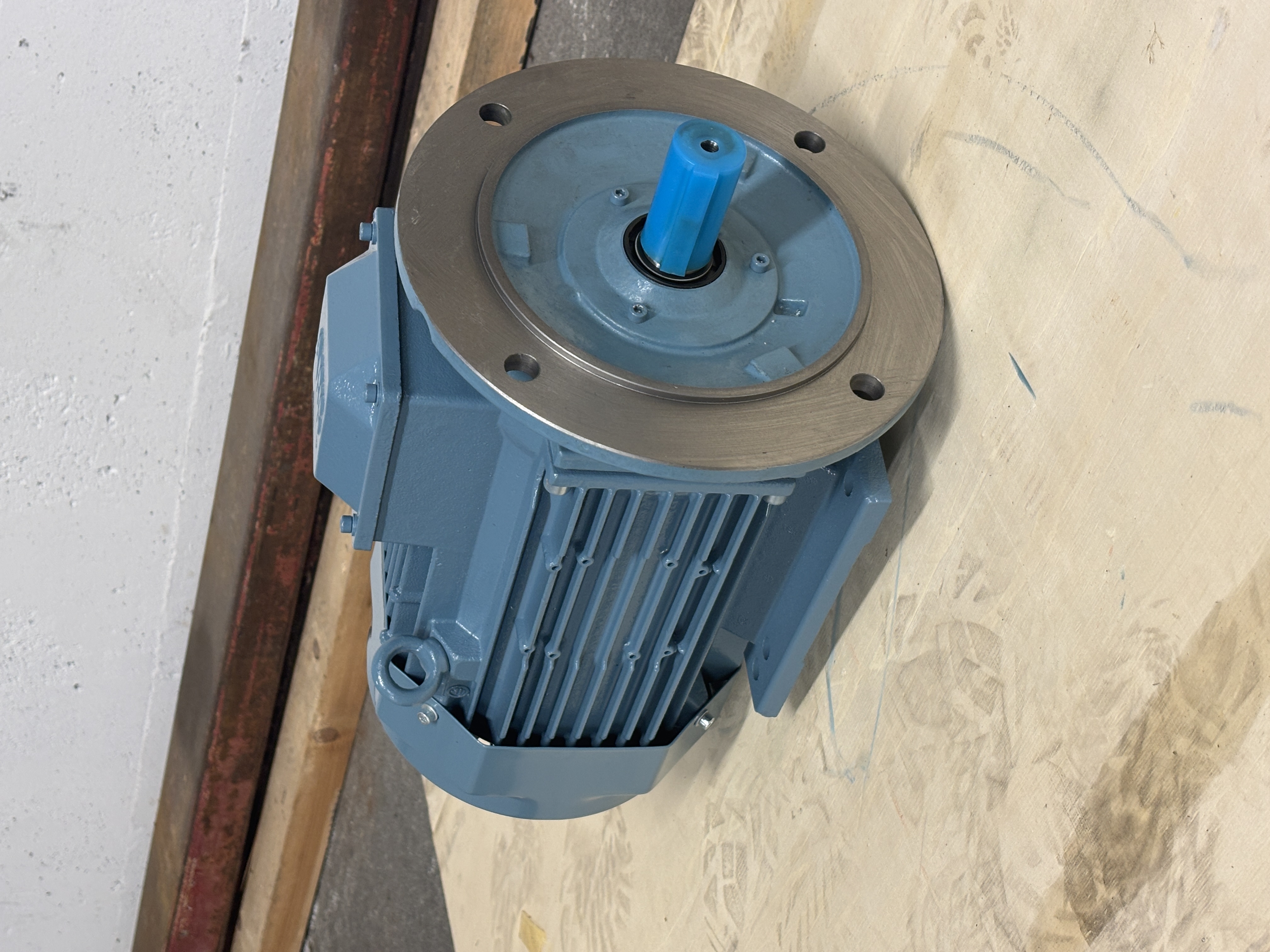

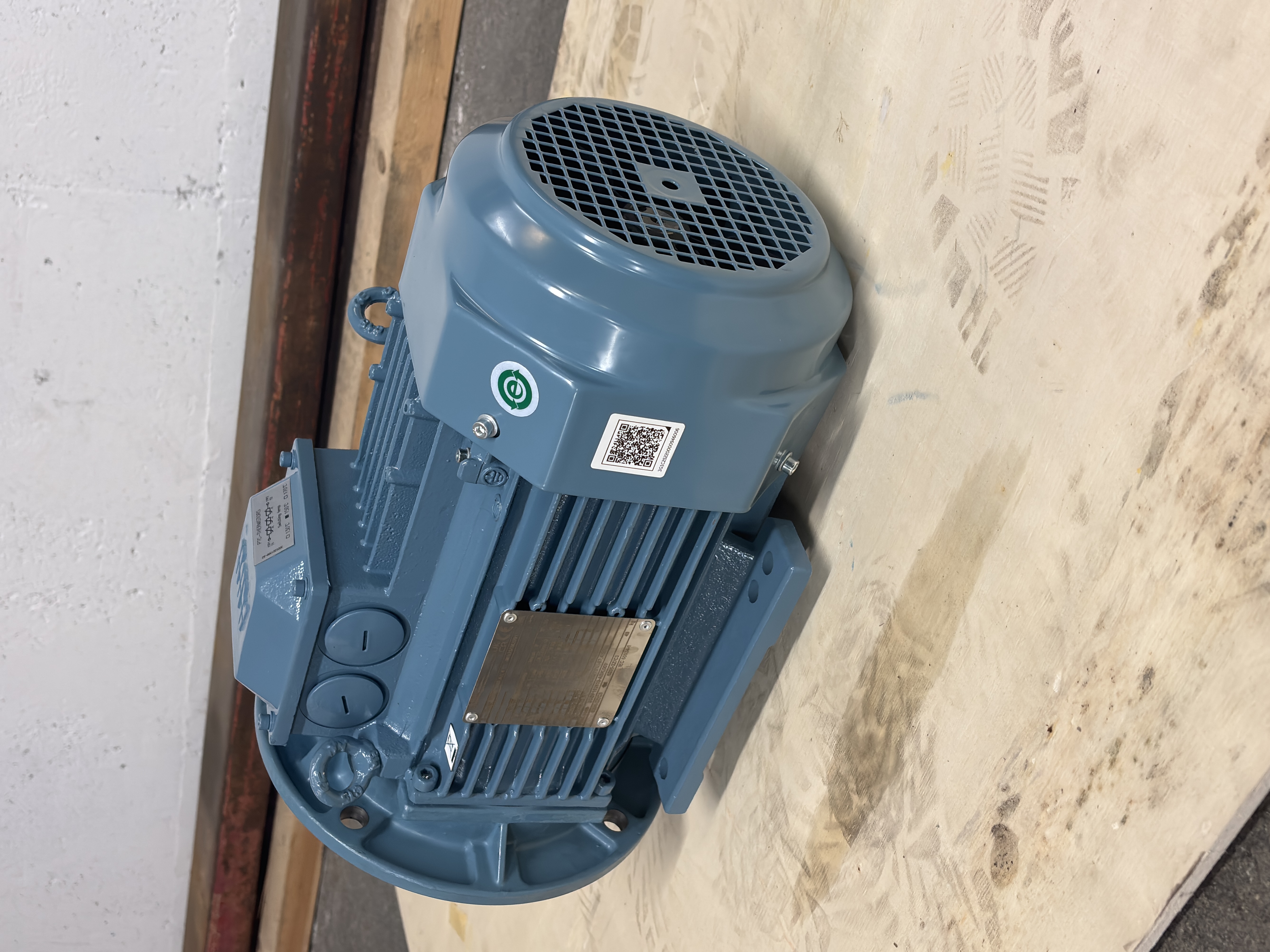

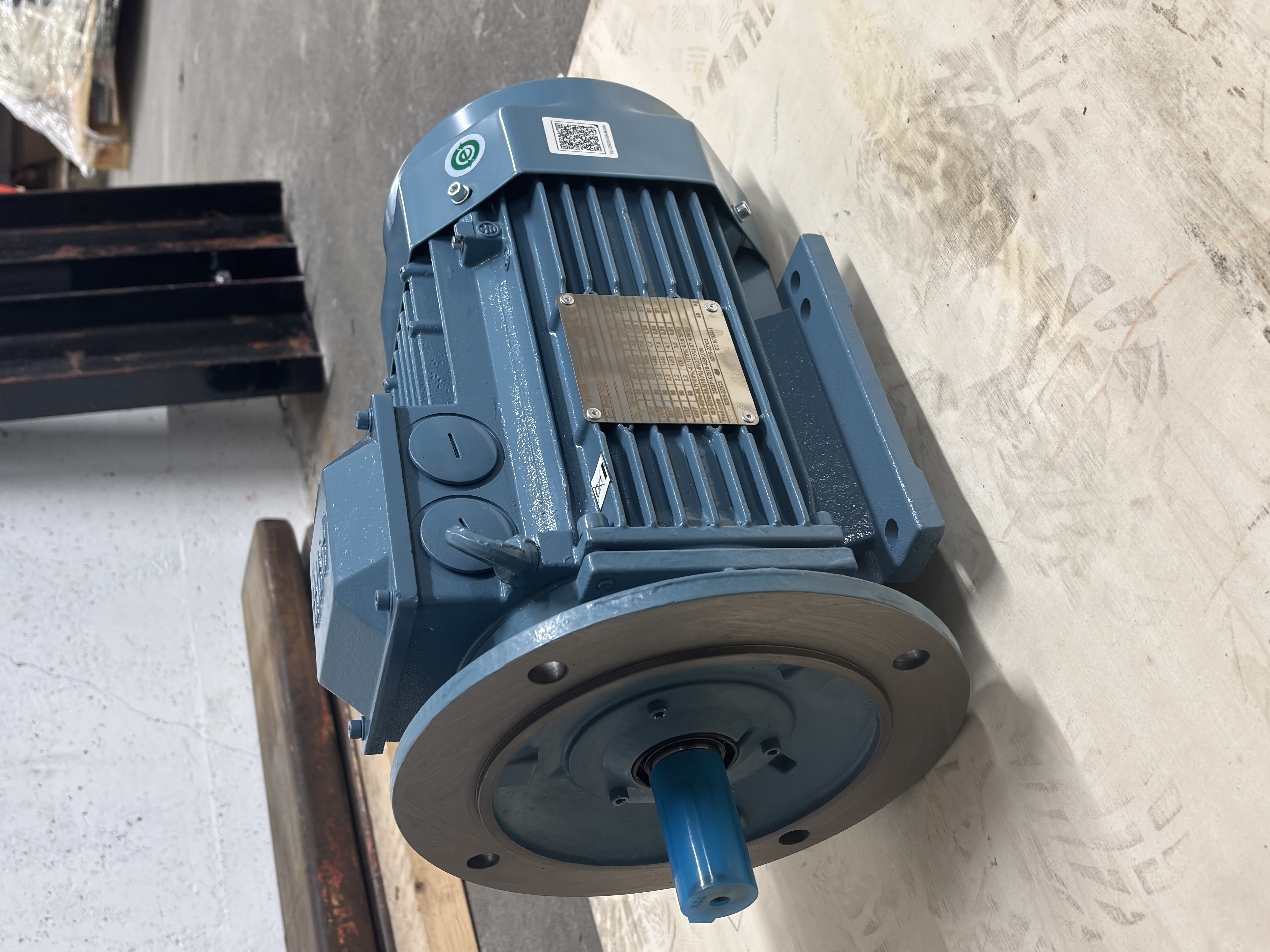

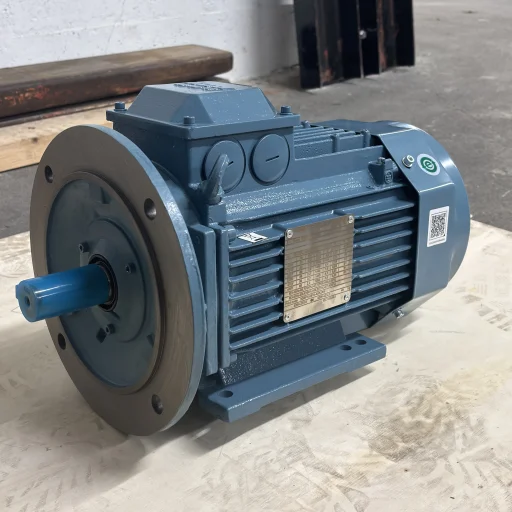

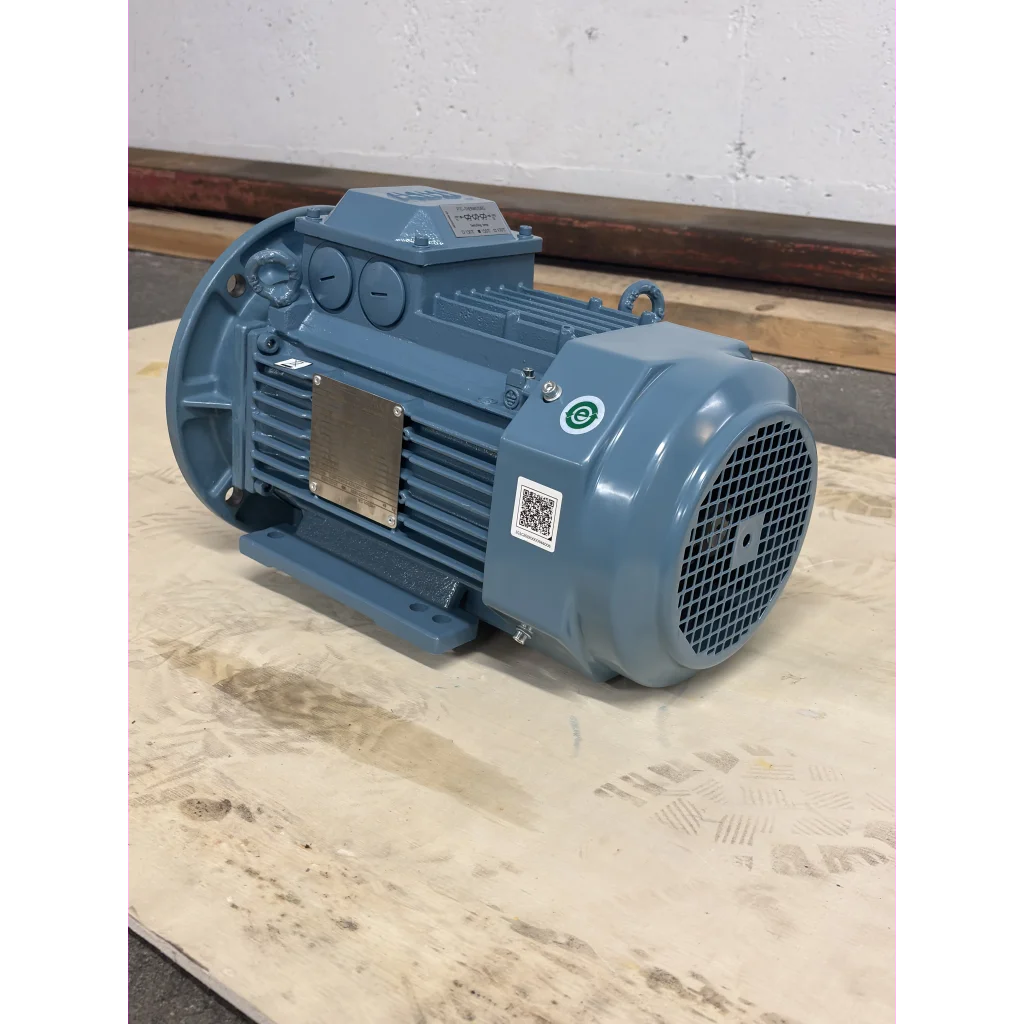

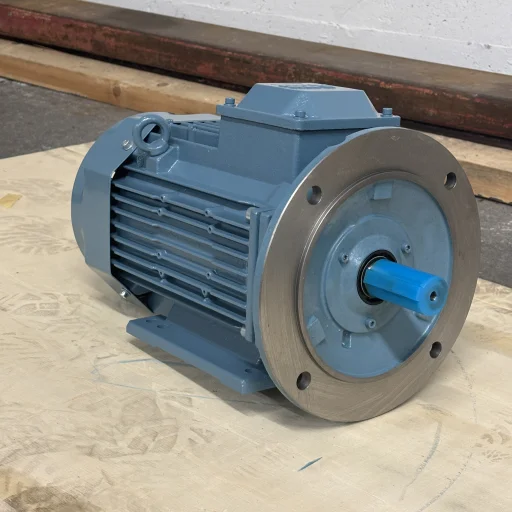

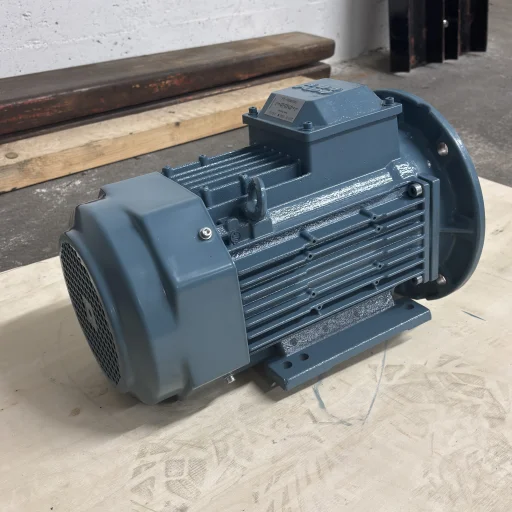

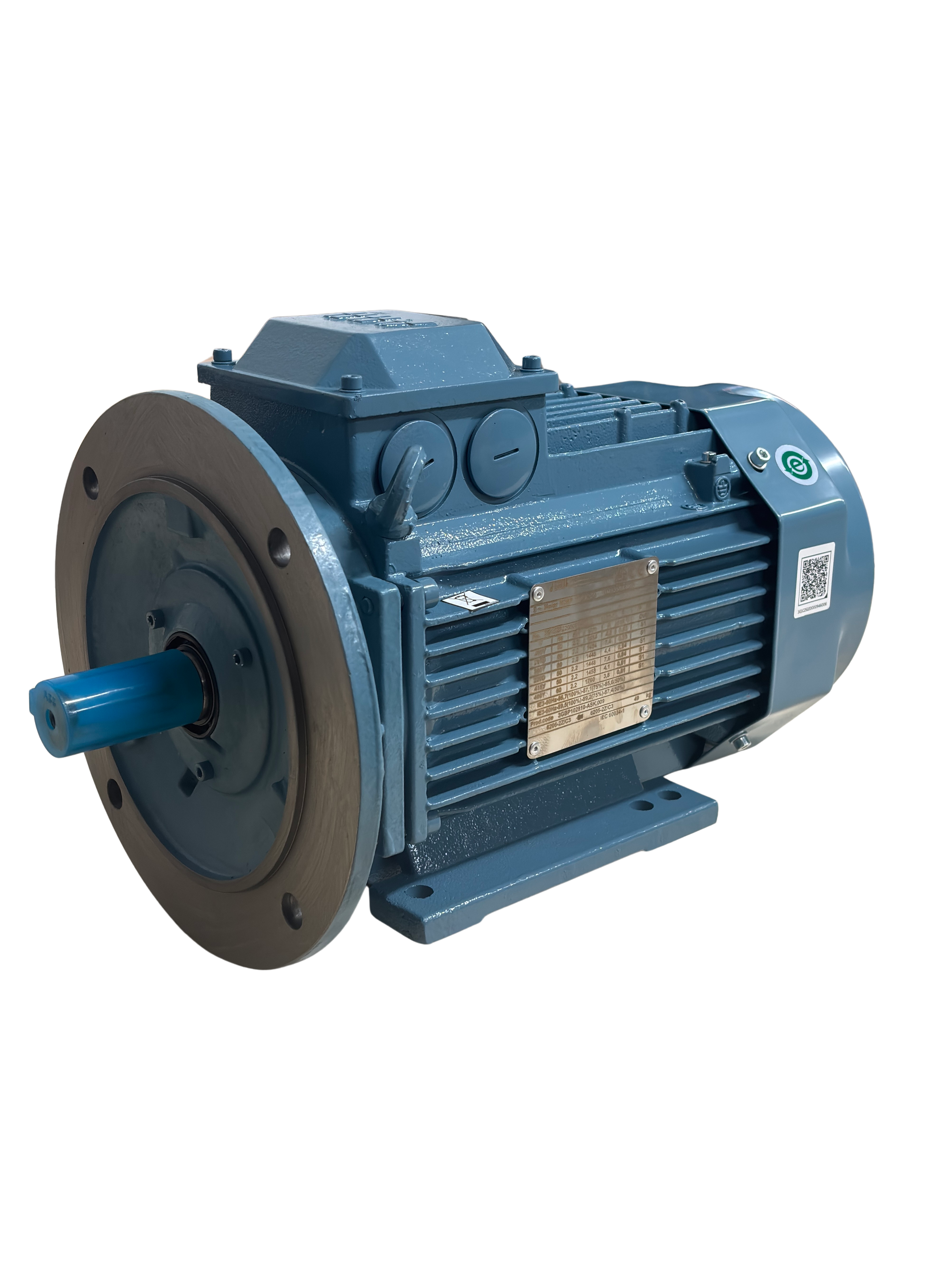

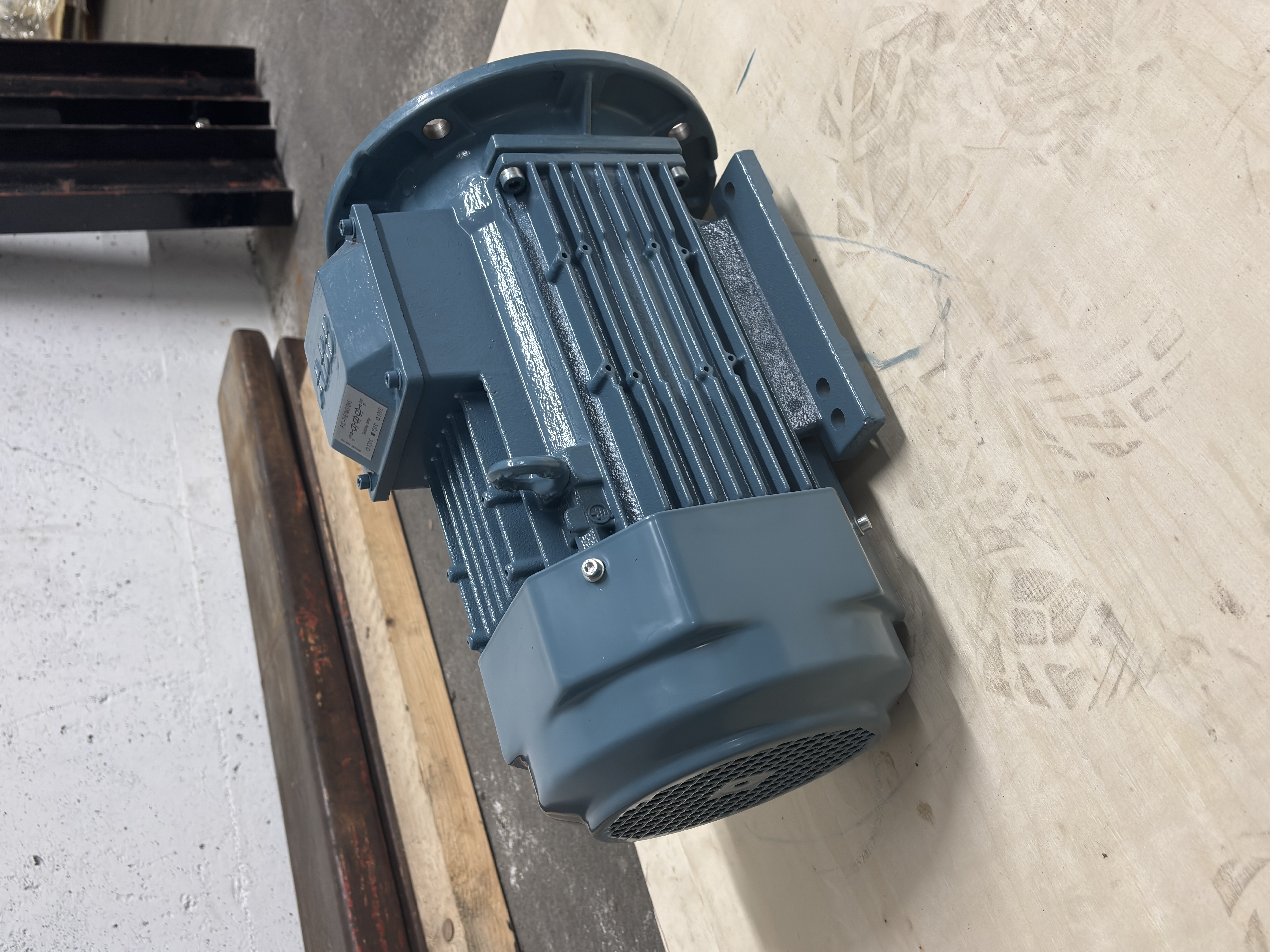

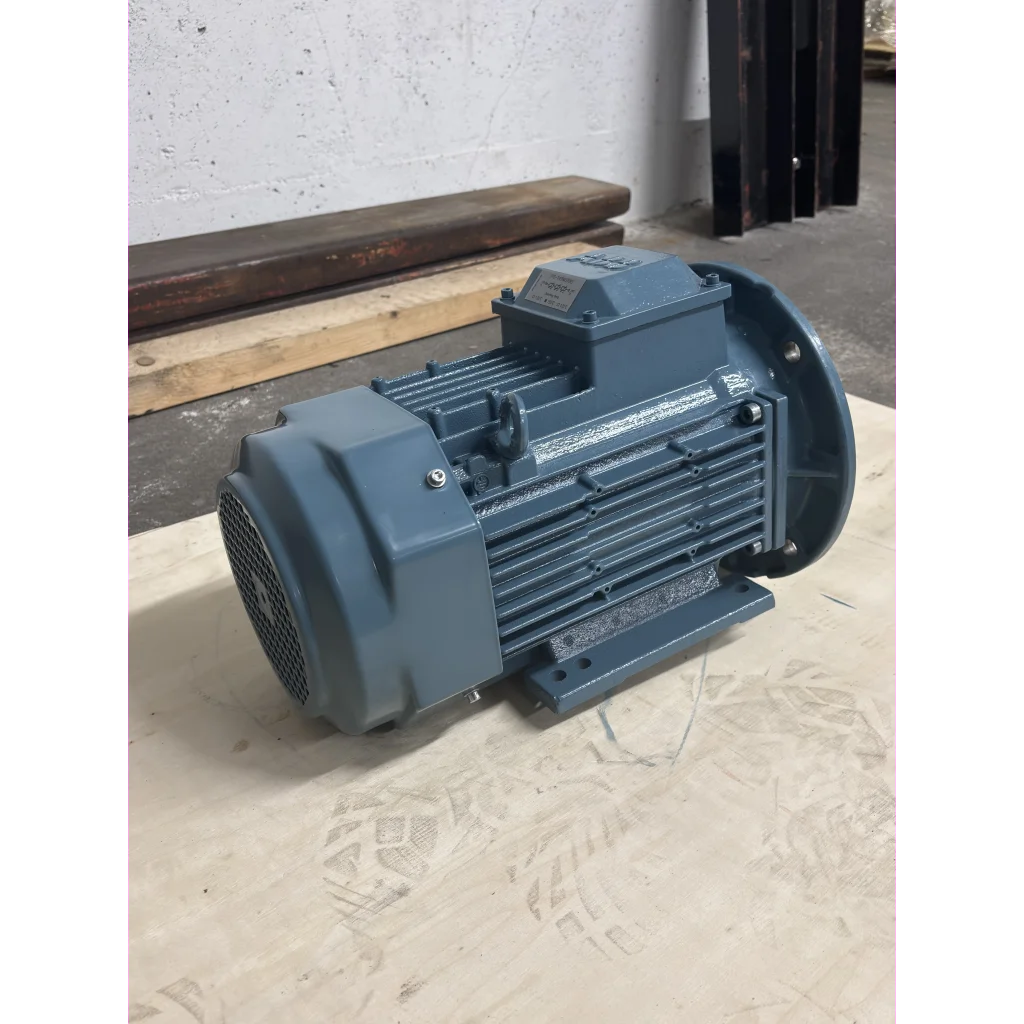

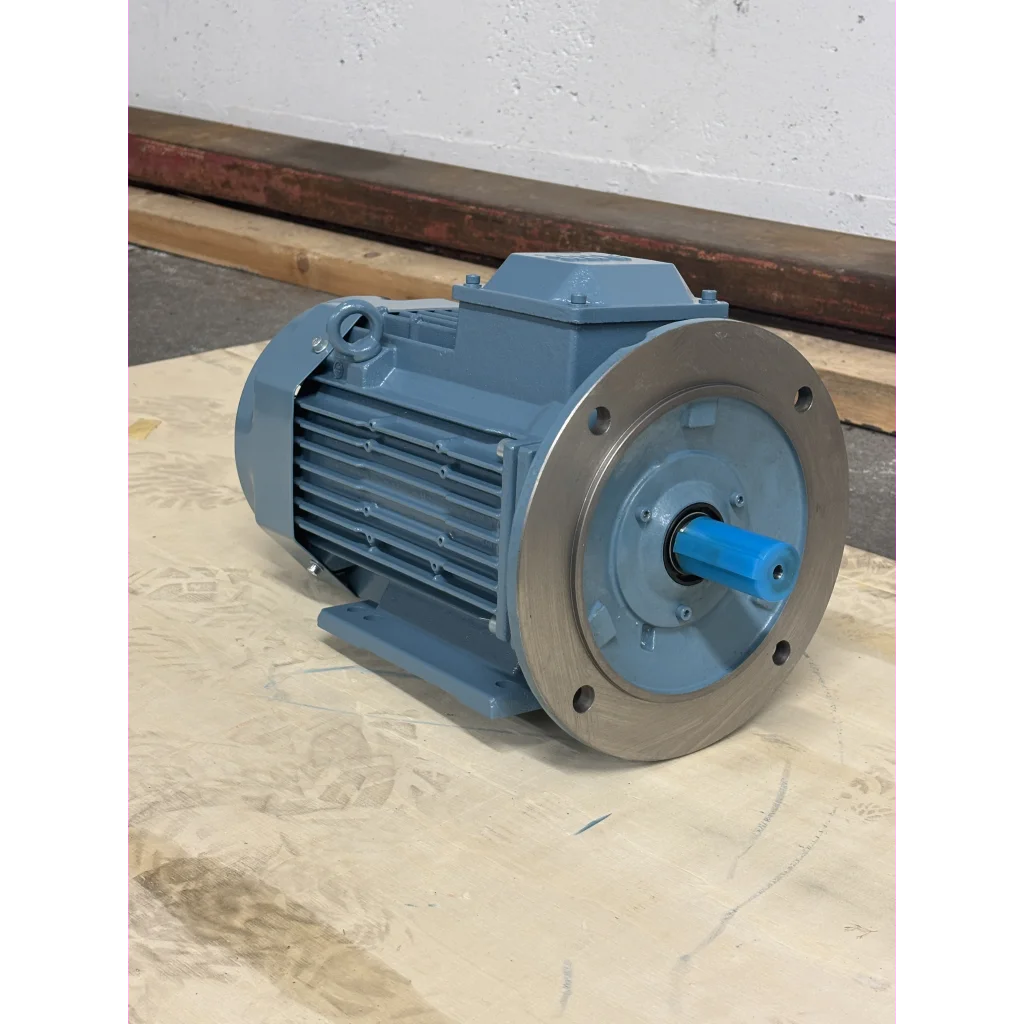

El.motor 100 2,2kW-4P 2/4V-50Hz B35 IP55 IE3

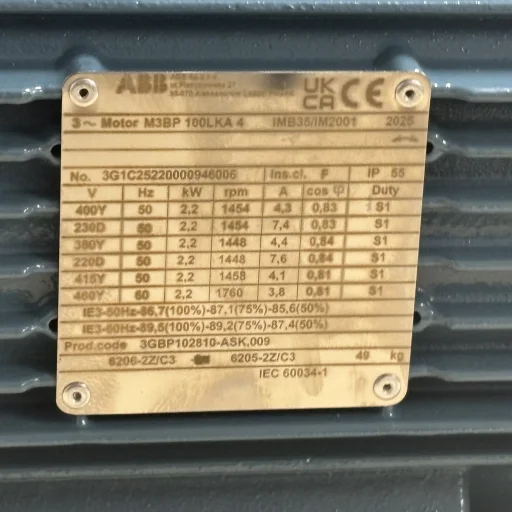

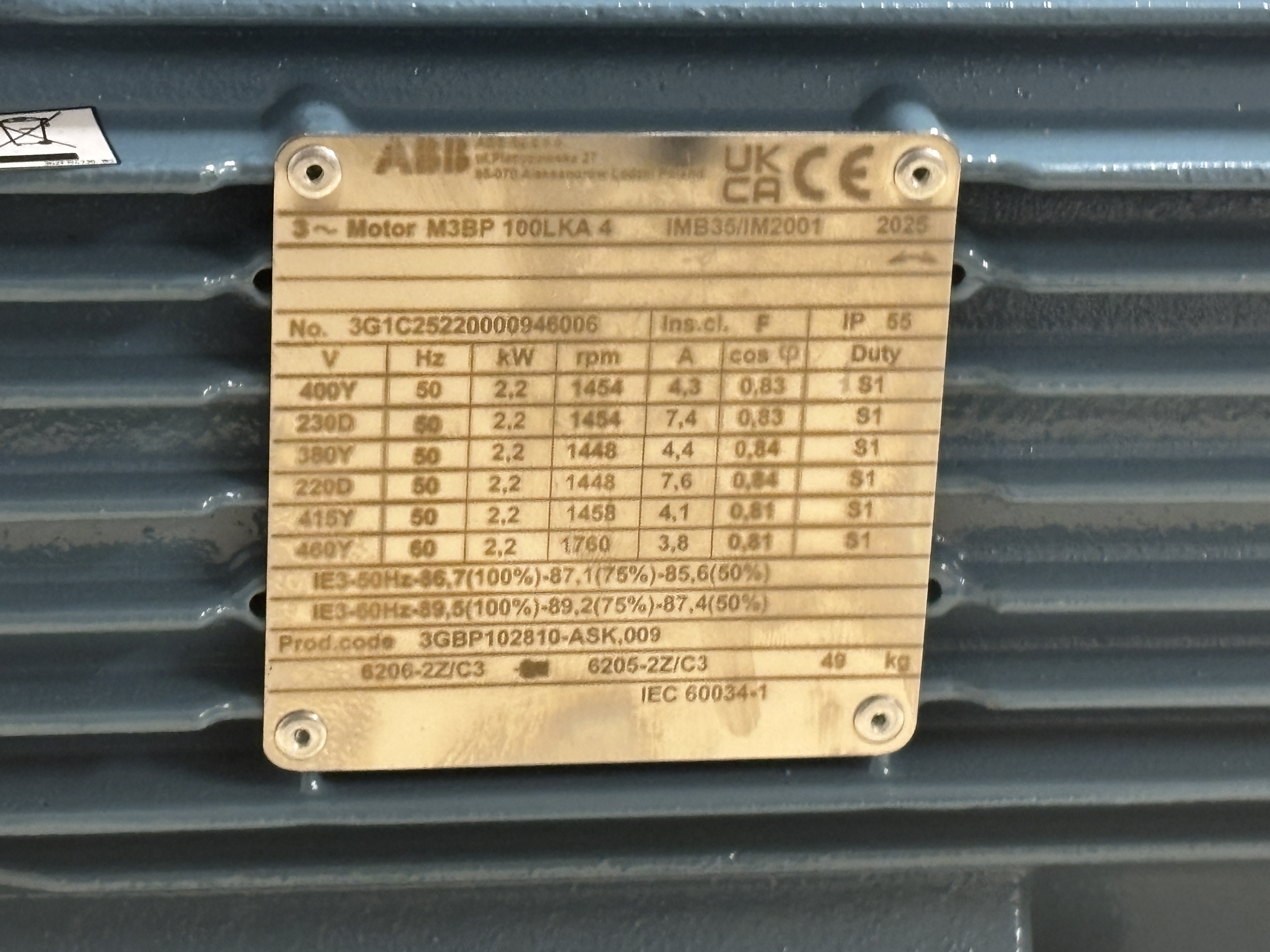

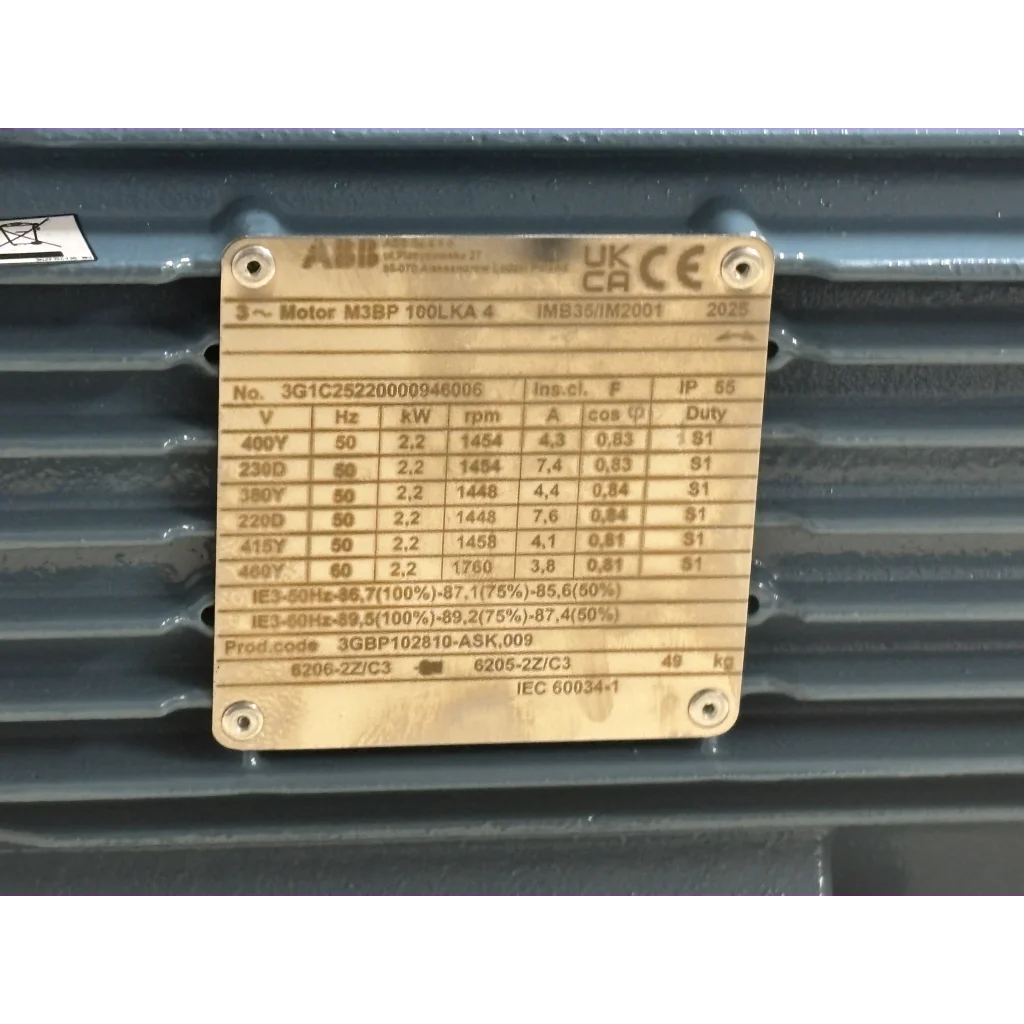

Power Voltage Conn. Freq. Current Speed Temp
Rise Eff. Class Efficiency Power
Factor
(kW) (V) (Hz) (A) (rpm) (%)
2.2 460 Y 60 3.8 1760 B IE3 89.5 0.81
2.2 230 D 50 7.4 1454 B IE3 86.7 0.83
2.2 415 Y 50 4.1 1458 B IE3 86.7 0.81
2.2 220 D 50 7.6 1448 B IE3 86.7 0.84
2.2 400 Y 50 4.3 1454 B IE3 86.7 0.83
2.2 380 Y 50 4.4 1448 B IE3 86.7 0.84
Poles: 4
Mounting: IM2001 IMB35
IntProtection: IP55
CoolMethod: IC411
Insulation Class: F
Net weight: 49
Customs Tariff No: 85015220
Frame Material: Cast Iron
Ambient Temp: 40
Altitude: 1000
Duty: S1
Additional options
009 IM 2001 foot/flange mounted, IEC flange, from IM 1001 (B35 from B3). IM2001 IMB35
