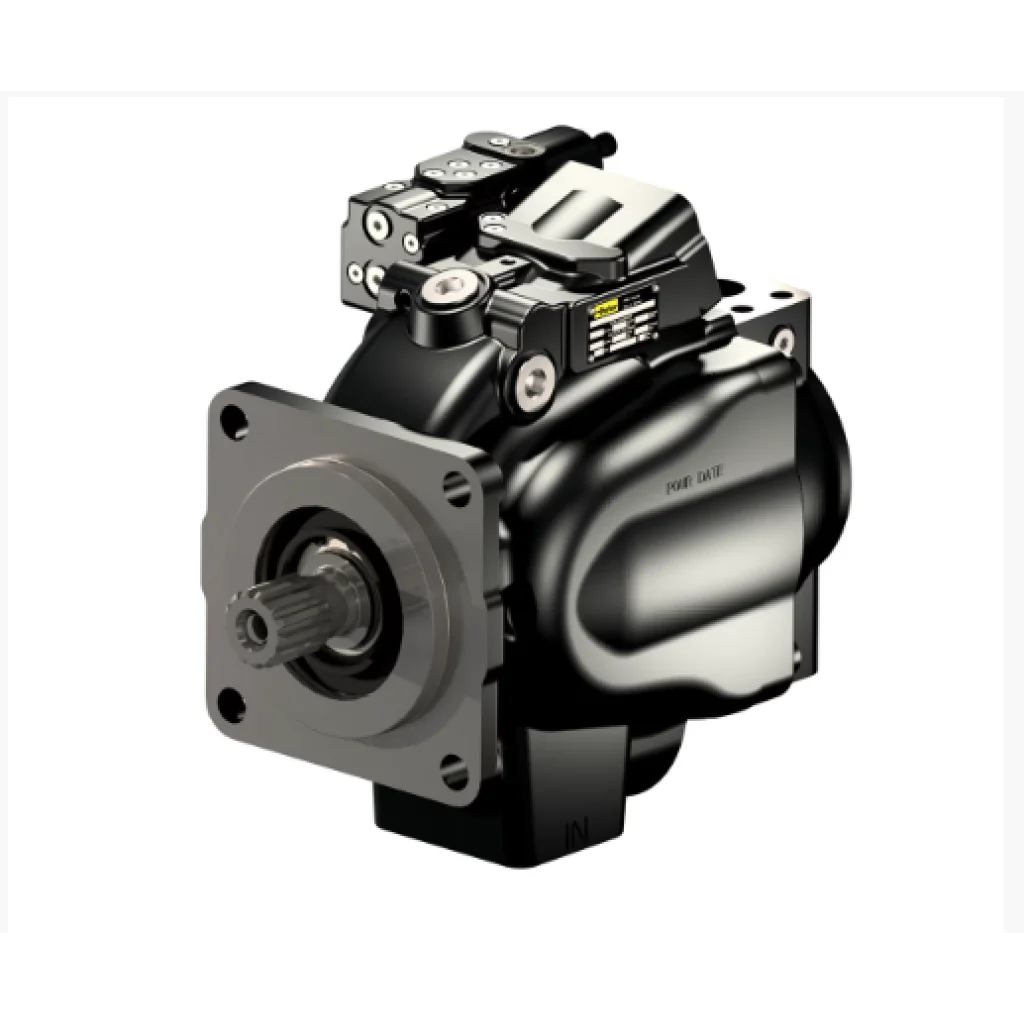

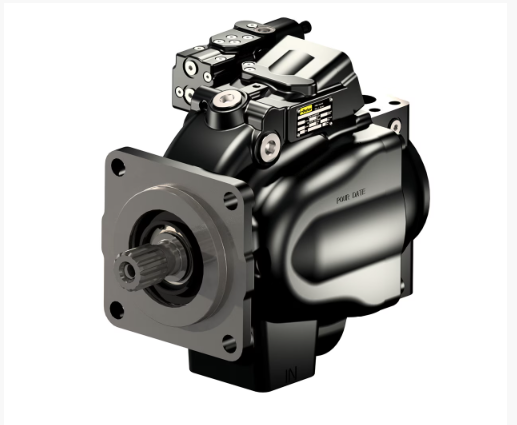

P2145L00C1C20RA20N00T1B1U Variabel Stempel pumpe 350 bar med RA kontroller (kan bygges om LA LS )

Technical Data

Part No.

P2145L00C1C20LA20N00T1B1P

Series

P2/P3 Series

Pump Series

P2 - Standard

Displacement

145 - 145 cc/rev (8.8 cu.in./rev)

Rotation

L - Counterclockwise (CCW)

Max Volume Stop Setting (70% - 100%)

00 - Default (full pump displacement)

Shaft Options

C1 - SAE C Spline

Mounting Flange

C - SAE C Pilot (5 in.)

Pressure Setting of Max Pressure Control [bar/10]

20

Controls

LA - Load sensing (2 spool)/Pmax without bleed orifice

Differential Pressure

20 - DIFFERENTIAL PRESSURE SETTING

Seal Type

N - Nitrile, single shaft seal

Torque Control Setting Low range

N/A

Torque Control Setting High Range

N/A

Torque Set for Pa Pb Lb Controls

00

Through Drive Configuration

T1 - Prepared for Through Drive (cover plate)

Port Location & Threads

B - Side - Inline Flange Ports - ISO 6149 / Metric threads

Multiple Pump Options

1 - Shipped as individual pump

Paint / Special Modifications

P - Pump Painted Black
